Installation [04/2018 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ROOF CONSOLE BOX ASSEMBLY
    1. Connect each connector.

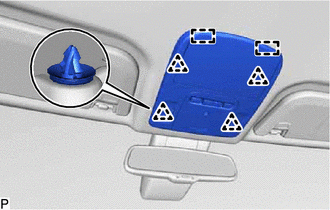

    2. for Normal Roof:
      1. Engage the 2 guides and 4 clips to install the roof console box assembly.
        GTY924872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

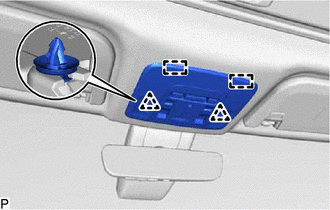

    3. for Moon Roof:
      1. Engage the 2 guides and 2 clips to install the roof console box assembly.
        GTY924871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
