Installation [04/2018 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FORWARD RECOGNITION CAMERA

When using a new forward recognition camera:

Remove the protective film.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

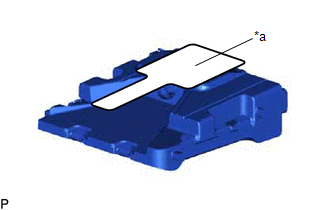

*a	Protective Film

NOTE:

Do not touch the camera lens after removing the protective film.

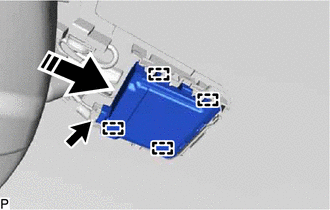

Engage the 4 guides as shown in the illustration.

NOTE:

Do not touch the camera lens.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Connect the connector to install the forward recognition camera.

INSTALL FORWARD RECOGNITION LATCH

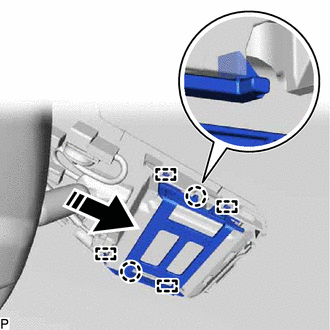

Engage the 4 guides and 2 claws as shown in the illustration to install the forward recognition latch.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 1 FORWARD RECOGNITION COVER

Engage the 2 clips and 2 guides as shown in the illustration to install the No. 1 forward recognition cover.

Install in this Direction

INSTALL NO. 2 FORWARD RECOGNITION COVER

Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the No. 2 forward recognition cover.

	Install in this Direction (1)
	Install in this Direction (2)

ADJUST FORWARD RECOGNITION CAMERA
1. If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.
  Refer to ADJUSTMENT (SEQUENTIAL RECOGNITION) [04/2018 - 08/2021]
