Installation [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

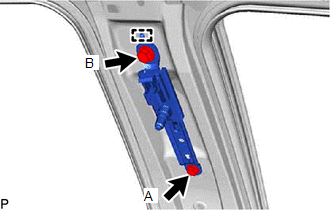

Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fully tighten the bolt (A), and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

INSPECT FRONT SEAT OUTER BELT ASSEMBLY
See step 1

INSTALL FRONT SEAT OUTER BELT ASSEMBLY

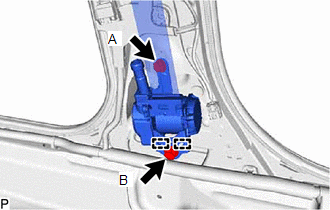

Engage the 2 guides and temporarily install the front seat outer belt assembly with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fully tighten the bolt (A), and then the bolt (B) to install the front seat outer belt assembly.
Bolt (A)

Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Bolt (B)

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

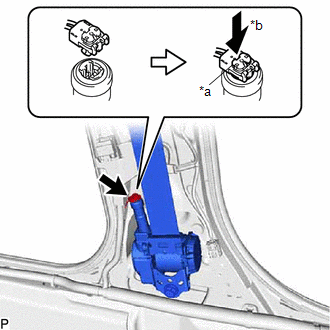

Connect the pretensioner connector and lock the locking button as shown in the illustration.

*a	Locking Button
*b	Lock

NOTE:

Securely lock the locking button.

Connect the shoulder anchor of the front seat outer belt assembly with the nut.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
Check that the ELR locks.
NOTE:
This check should be performed with the front seat outer belt assembly installed to the vehicle.
1. With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

INSTALL CENTER PILLAR UPPER GARNISH
Refer to PROCEDURE - Step 20
INSTALL CENTER PILLAR LOWER GARNISH
Refer to PROCEDURE - Step 21
CONNECT FRONT SEAT OUTER BELT ASSEMBLY
1. Connect the floor anchor of the front seat outer belt assembly with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
INSTALL LAP BELT OUTER ANCHOR COVER
1. Engage the 3 claws to install the lap belt outer anchor cover.
CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
Refer to PROCEDURE - Step 1
INSTALL REAR DOOR SCUFF PLATE (for Gasoline Model)
Refer to PROCEDURE - Step 25
INSTALL REAR DOOR SCUFF PLATE (for HV Model)
Refer to PROCEDURE - Step 26
CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
Refer to PROCEDURE - Step 1
INSTALL FRONT DOOR SCUFF PLATE
Refer to PROCEDURE - Step 30
INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)
Refer to PROCEDURE - Step 5
INSTALL REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 6
CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 7
INSTALL LUGGAGE COMPARTMENT INNER TRIM PAD (for Gasoline Model)
w/ Seat Heater System:

Refer to PROCEDURE - Step 7
INSTALL SPARE WHEEL COVER ASSEMBLY (for Gasoline Model)
w/ Seat Heater System:

Refer to PROCEDURE - Step 11
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for A25A-FXS:

Refer to PROCEDURE - Step 2

for 2GR-FKS:

Refer to PROCEDURE - Step 2

for A25A-FKS:

Refer to PROCEDURE - Step 2
INSTALL LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 3
PERFORM DIAGNOSTIC SYSTEM CHECK
for HV Model:

Refer to DTC CHECK / CLEAR [04/2018 - ]

for Gasoline Model:

Refer to DTC CHECK / CLEAR [04/2018 - ]
INSPECT SRS WARNING LIGHT
for HV Model:

Refer to OPERATION CHECK [04/2018 - ]

for Gasoline Model:

Refer to OPERATION CHECK [04/2018 - ]
