Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [11/2020 - 12/2022]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY

    Refer to REMOVAL [11/2021 - 12/2022]

  3. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 3

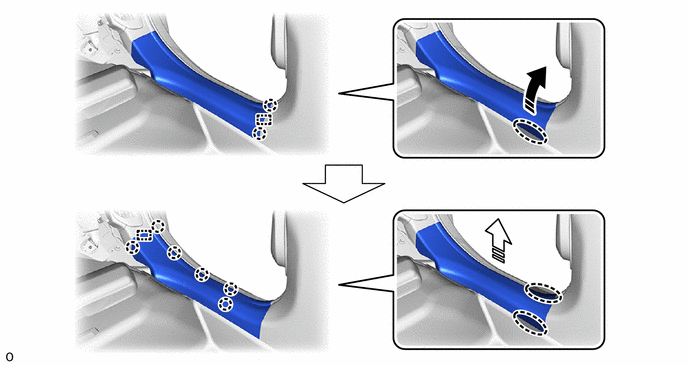

  4. REMOVE REAR DOOR SCUFF PLATE INSIDE LH
    1. GTY1016868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  5. REMOVE REAR DOOR SCUFF PLATE INSIDE RH
    1. Use the same procedure described for the LH side.
  6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 2

  7. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.

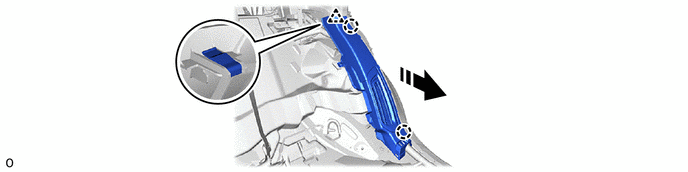

  8. REMOVE REAR SEAT SIDE GARNISH LH
    1. GTY1017629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. REMOVE REAR SEAT SIDE GARNISH RH
    1. Use the same procedure described for the LH side.

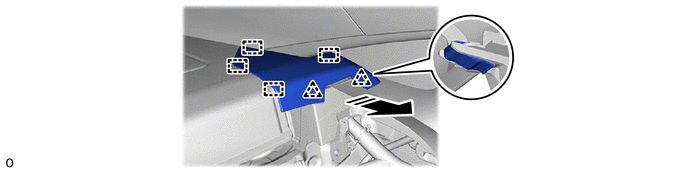

  10. REMOVE INNER ROOF SIDE GARNISH COVER LH
    1. GTY1016611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  11. REMOVE INNER ROOF SIDE GARNISH COVER RH
    1. Use the same procedure described for the LH side.

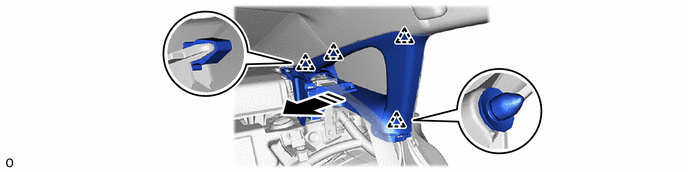

  12. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH
    1. GTY1017442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. When reusing a inner roof side garnish assembly LH:

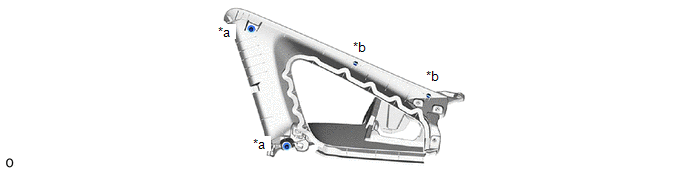

      GTY1017042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip A *b Clip B
  13. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  14. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

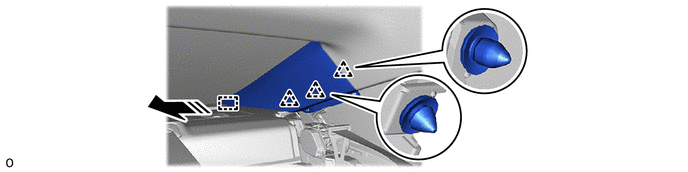

    1. GTY1016475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. When reusing a roof side rail garnish assembly LH:

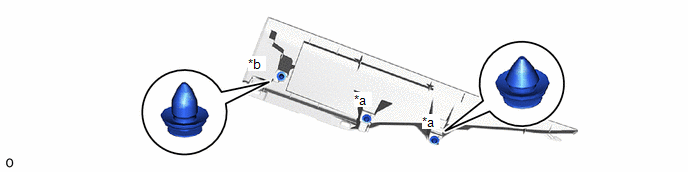

      GTY1016437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip A *b Clip B
  15. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  16. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 2

  17. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure described for the LH side.

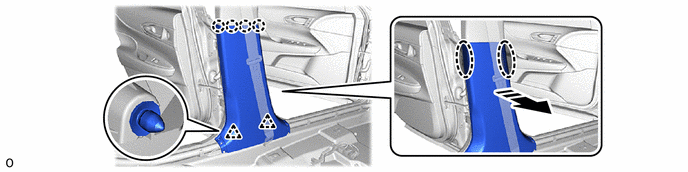

  18. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. GTY1017743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  19. REMOVE LOWER CENTER PILLAR GARNISH RH
    1. Use the same procedure described for the LH side.
  20. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH

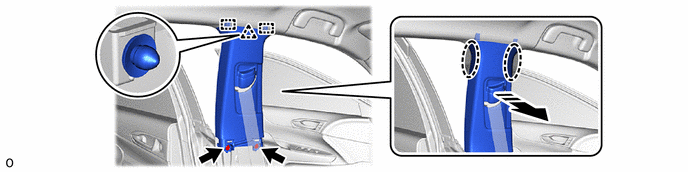

    1. GTY1016568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. When reusing a center pillar garnish assembly LH:
      GTY1017507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  22. REMOVE ASSIST GRIP SUB-ASSEMBLY

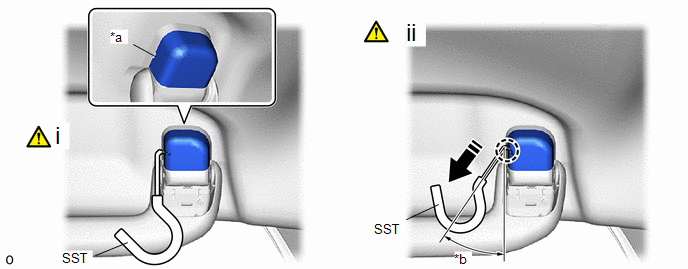

    1. GTY1016750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout *b 30 to 45°
      Remove in this Direction - -
      1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
        • SST: 09813-00010
        NOTE:

        To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.

      2. Pull SST as shown in the illustration to detach the claw.
        NOTE:

        To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.

        HINT:

        Use the same procedure for the claw on the other side of the assist grip cover.

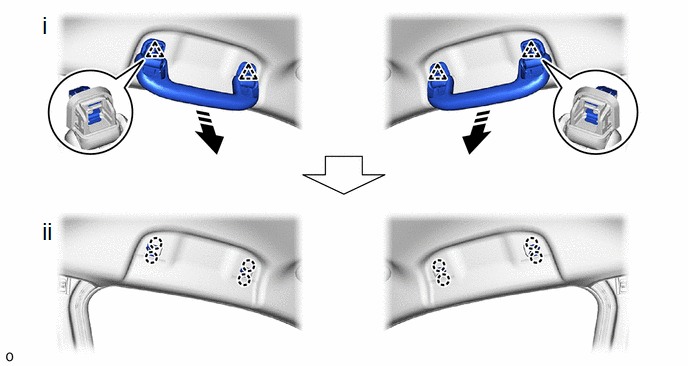

    2. GTY1016279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the clip and remove the assist grip sub-assembly as shown in the illustration.
      2. Remove the 4 clips.
  23. REMOVE REAR ASSIST GRIP ASSEMBLY LH
    1. Use the same procedure for the assist grip sub-assembly.
  24. REMOVE REAR ASSIST GRIP ASSEMBLY RH
    1. Use the same procedure for the assist grip sub-assembly.

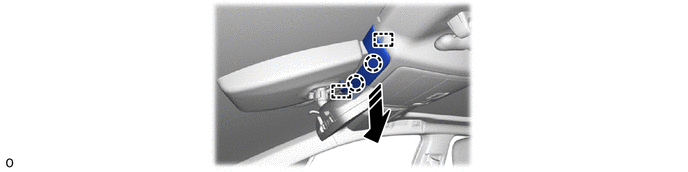

  25. REMOVE FRONT ROOF TOP GARNISH
    1. GTY1016836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  26. REMOVE MAP LIGHT ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  27. REMOVE SPOT LIGHT ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  28. REMOVE VANITY LIGHT ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  29. REMOVE NO. 2 FORWARD RECOGNITION COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 for Stereo Camera:
    Refer to PROCEDURE - Step 2
    for Mono Camera:
    Refer to PROCEDURE - Step 2
  30. REMOVE NO. 1 FORWARD RECOGNITION COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 for Stereo Camera:
    Refer to PROCEDURE - Step 3
    for Mono Camera:
    Refer to PROCEDURE - Step 3
  31. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

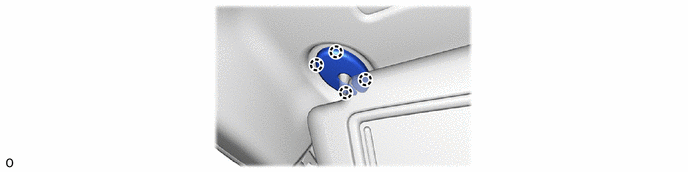

  32. REMOVE VISOR BRACKET COVER
    1. GTY1017790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

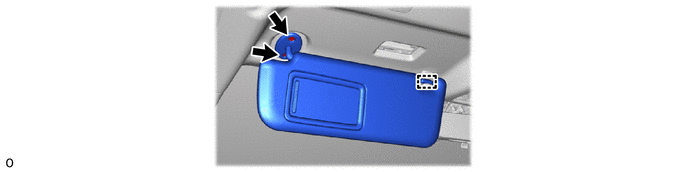

  33. REMOVE VISOR ASSEMBLY LH
    1. GTY1017499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE VISOR ASSEMBLY RH
    1. Use the same procedure described for the LH side.

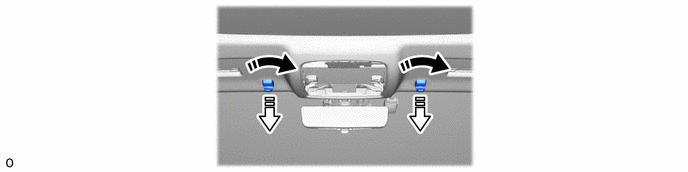

  35. REMOVE VISOR HOLDER
    1. GTY1017527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction Remove in this Direction
  36. REMOVE ROOF HEADLINING ASSEMBLY

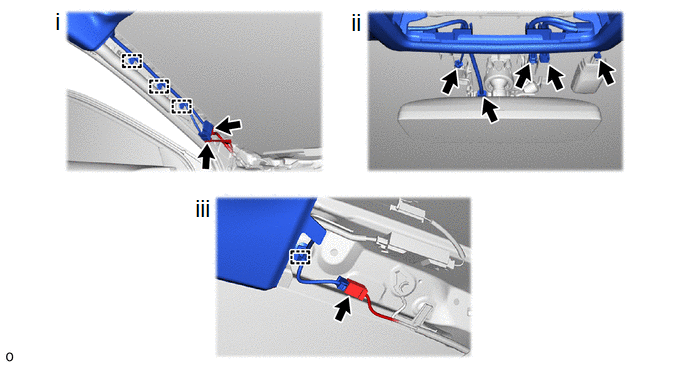

    1. w/o Advanced Drive:
      GTY1016589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. for Front Pillar LH Side:

        1. Remove the protective cover installed to the front pillar LH.

        2. Disconnect the 2 connectors.

        3. Detach the clamp.

        4. Install the protective cover to the front pillar LH.

      2. for Windshield Glass Side:

        1. Disconnect each connector.

      3. for Rear Pillar RH Side:

        1. Disconnect the connector.

        2. Detach the clamp.

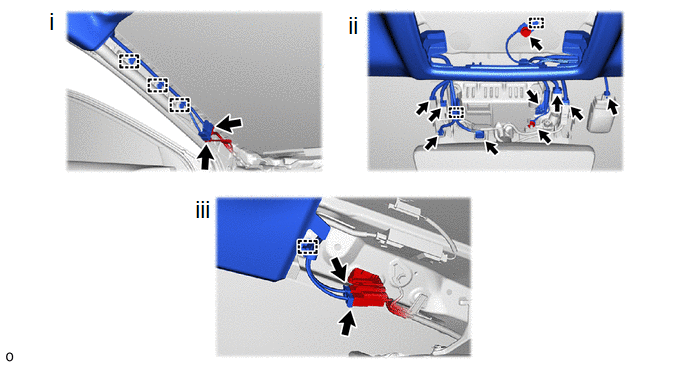

    2. w/ Advanced Drive:
      GTY1016570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. for Front Pillar LH Side:

        1. Remove the protective cover installed to the front pillar LH.

        2. Disconnect the 2 connectors.

        3. Detach the clamp.

        4. Install the protective cover to the front pillar LH.

      2. for Windshield Glass Side:

        1. Disconnect each connector.

        2. Remove the nut.

        3. Remove the bolt and detach the guide.

        4. Detach the clamp.

      3. for Rear Pillar RH Side:

        1. Disconnect the 2 connectors.

        2. Detach the clamp.

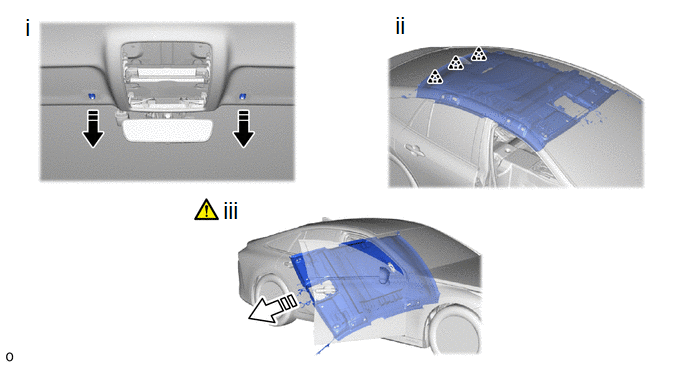

    3. for Normal Roof:
      GTY1017139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Remove the visor holder base as shown in the illustration.
      2. Detach the clip and remove the roof headlining assembly.
      3. Remove the roof headlining assembly from the vehicle through the front door RH as shown in the illustration.
        NOTE:
        • Check that the corners of the roof headlining assembly are free of bending, twisting and other deformation and that none of the mounted parts are falling off.
        • Do not damage the roof headlining assembly and body interior.
        • The headlining assembly must be carried out of the vehicle by multiple people to prevent deformation of the roof headlining assembly.

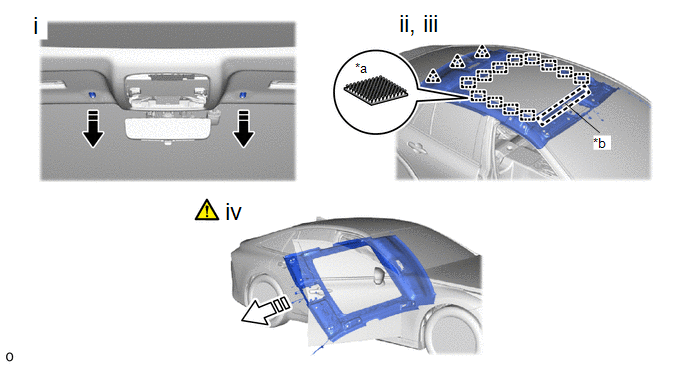

    4. for Panoramic Moon Roof:
      GTY1017718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener *b Guide
      Remove in this Direction (1) Remove in this Direction (2)
      1. Remove the visor holder base as shown in the illustration.
      2. Detach the clip and fastener.
      3. Detach the guide and remove the roof headlining assembly.
      4. Remove the roof headlining assembly from the vehicle through the front door RH as shown in the illustration.
        NOTE:
        • Check that the corners of the roof headlining assembly are free of bending, twisting and other deformation and that none of the mounted parts are falling off.
        • Do not damage the roof headlining assembly and body interior.
        • The headlining assembly must be carried out of the vehicle by multiple people to prevent deformation of the roof headlining assembly.
  37. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacing the front door scuff plate outside LH.

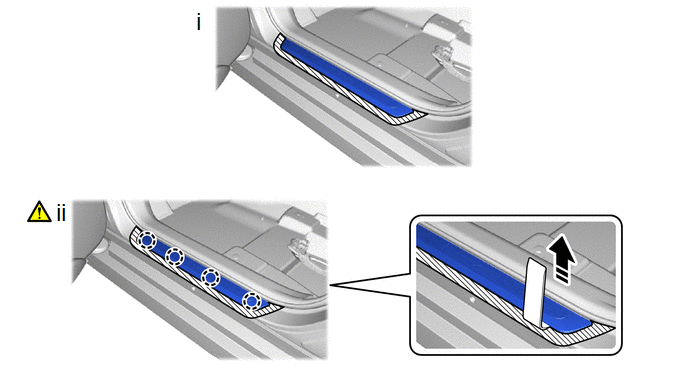

    1. GTY1017359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Protective Tape
      1. Apply protective tape around the front door scuff plate outside LH.
      2. Insert moulding remover D at the position shown in the illustration and lift in the direction indicated by the arrow to detach the claw and front door scuff plate outside LH.
  38. REMOVE FRONT DOOR SCUFF PLATE RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacing the front door scuff plate RH.
    1. Use the same procedure described for the LH side.
  39. REMOVE REAR DOOR SCUFF PLATE OUTSIDE LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacing the rear door scuff plate outside LH.

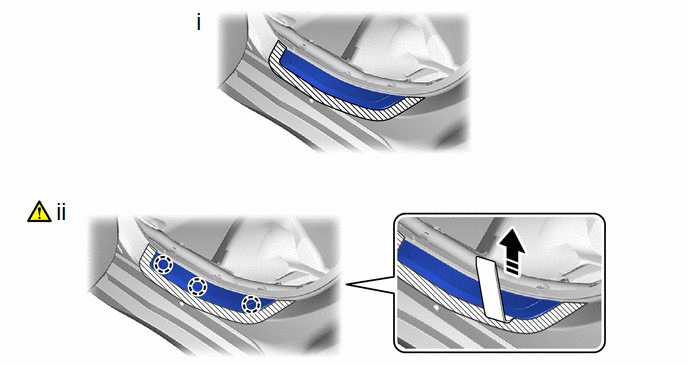

    1. GTY1016721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Protective Tape
      1. Apply protective tape around the rear door scuff plate outside LH.
      2. Insert moulding remover D at the position shown in the illustration and lift in the direction indicated by the arrow to detach the claw and rear door scuff plate outside LH.
  40. REMOVE REAR DOOR SCUFF PLATE OUTSIDE RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacing the rear door scuff plate outside RH.
    1. Use the same procedure described for the LH side.
