Removal [11/2020 - ]: Procedure

  1. REMOVE SPOT LIGHT ASSEMBLY

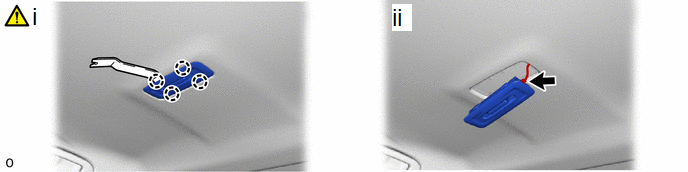

    1. GTY991232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using moulding remover B, detach the claw.
      2. Disconnect the connector and remove the spot light assembly.
