Removal [11/2020 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

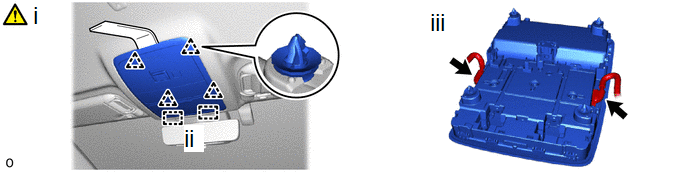

    1. GTY992042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using moulding remover D, detach the clip.
      2. Detach the guide and remove the map light assembly.
      3. Disconnect the 2 connectors.
