Removal [11/2020 - ]: Procedure

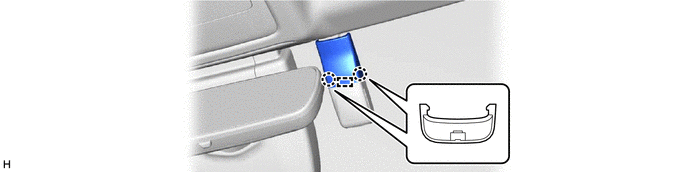

  1. REMOVE RAIN SENSOR COVER
    1. GTY1017675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

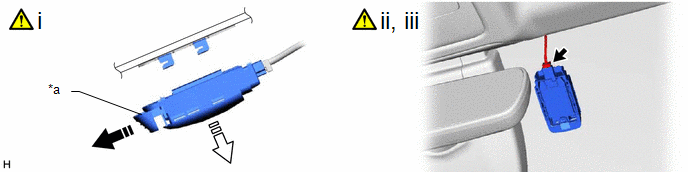

  2. REMOVE RAIN SENSOR
    1. GTY1016463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper - -
      Release Remove in this Direction
      1. Release the stopper by pulling it out as shown in the illustration.
      2. Disconnect the rain sensor from the windshield glass as shown in the illustration.
      3. Disconnect the connector to remove the rain sensor.
        NOTE:

        If the rain sensor has been dropped, replace itwith a new one.

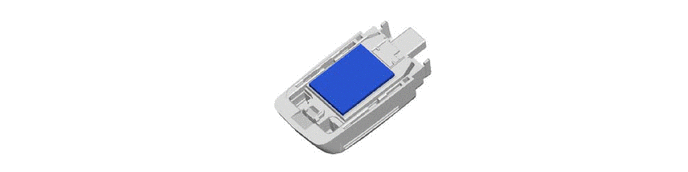

  3. REMOVE RAIN SENSOR TAPE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    • Only perform this procedure when replacing the rain sensor tape.
    • Replace the rain sensor tape with new one if it is damaged or contaminated.
    1. GTY1016977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
