Removal [08/2015 - ]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [08/2015 - ] ).
NOTE:After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] Refer to INITIALIZATION [08/2017 - ] ).
- REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 11
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 6 [08/2015 - 08/2017] Refer to PROCEDURE - Step 6 [08/2017 - 08/2019] Refer to PROCEDURE - Step 7 [08/2019 - ]
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 18
- REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
Refer to PROCEDURE - Step 1
- REMOVE LOWER INSTRUMENT PANEL PAD SUBASSEMBLY LH
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 12
- REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 13
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUBASSEMBLY
Refer to PROCEDURE - Step 17
- REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 19

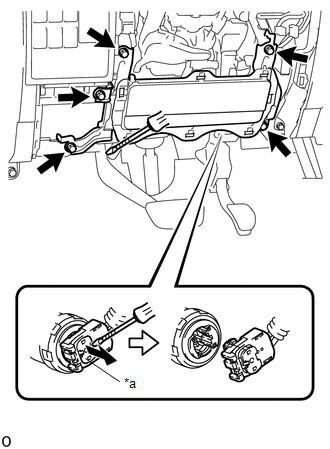

- REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
