Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

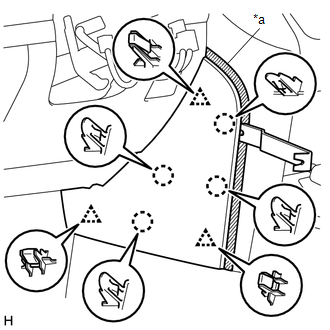

    GTY545668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the No. 2 instrument panel finish panel cushion.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Using a moulding remover B, detach the 4 claws and 3 clips and remove the No. 2 instrument panel finish panel cushion.
  2. REMOVE LOWER INSTRUMENT PANEL PAD SUBASSEMBLY LH

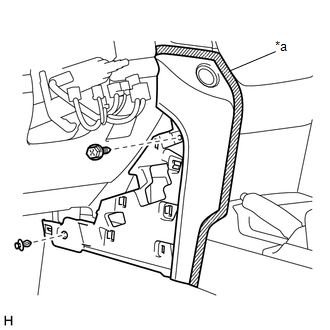

    GTY559126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower instrument panel pad subassembly LH.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Remove the clip and screw.

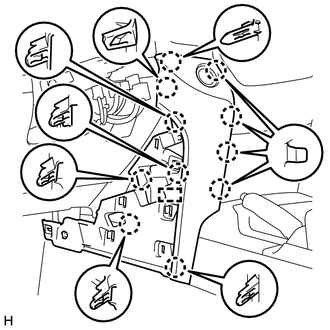

    3. GTY561095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 11 claws and guide.

    4. Disconnect the connector and detach the clamps and remove the lower instrument panel pad subassembly LH.
  3. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION

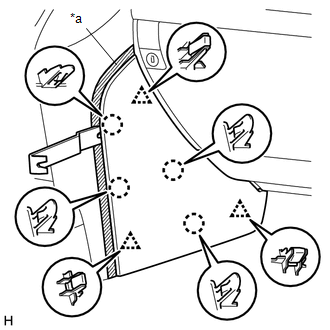

    GTY567356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the No. 1 instrument panel finish panel cushion.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Using a moulding remover B, detach the 4 claws and 3 clips and remove the No. 1 instrument panel finish panel cushion.
  4. REMOVE LOWER INSTRUMENT PANEL PAD SUBASSEMBLY RH

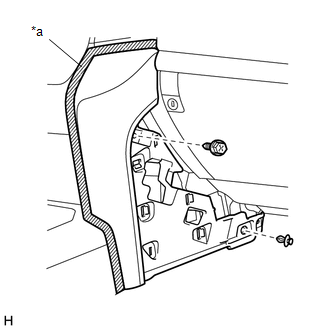

    GTY605600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower instrument panel pad subassembly RH.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Remove the clip and screw.

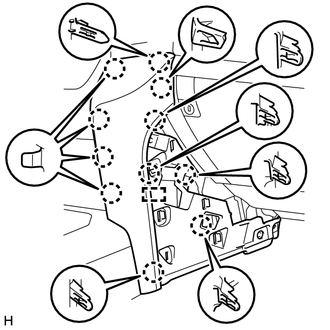

    3. GTY561084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 11 claws and guide and remove the lower instrument panel pad subassembly RH.

  5. REMOVE SHIFT LEVER KNOB SUBASSEMBLY
    GTY602516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Twist the shift lever knob subassembly in the direction indicated by the arrow and remove it.
  6. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUBASSEMBLY

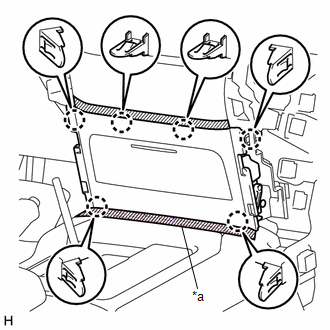

    GTY579149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower center instrument cluster finish panel subassembly.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Detach the 6 claws and remove the lower center instrument cluster finish panel subassembly.
  7. REMOVE CONSOLE CUP HOLDER BOX SUBASSEMBLY

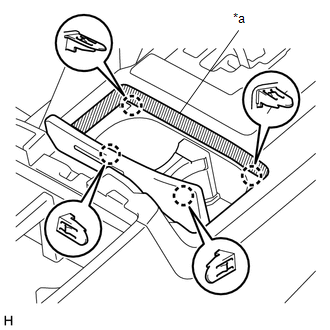

    GTY548252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the console cup holder box subassembly.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Detach the 4 claws and remove the console cup holder box subassembly.
  8. REMOVE UPPER CONSOLE PANEL

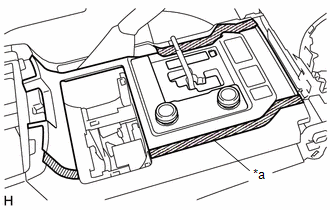

    GTY558096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the upper console panel.
      TEXT IN ILLUSTRATION

      *a Protective Tape

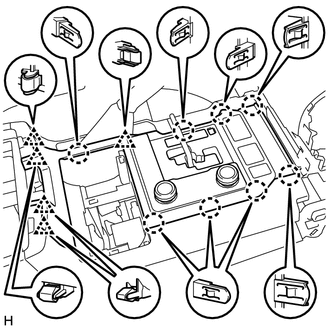

    2. GTY561082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 8 claws and 5 clips.

    3. Disconnect the connectors and remove the upper console panel.
  9. REMOVE REAR UPPER CONSOLE PANEL SUBASSEMBLY

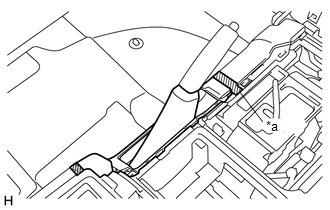

    GTY565272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the rear upper console panel subassembly.
      TEXT IN ILLUSTRATION

      *a Protective Tape

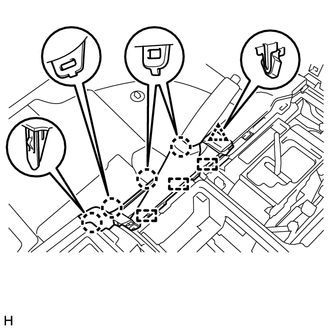

    2. GTY561083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 4 claws, clip and 3 guides and remove the rear upper console panel subassembly.

  10. REMOVE UPPER CONSOLE PANEL SUBASSEMBLY

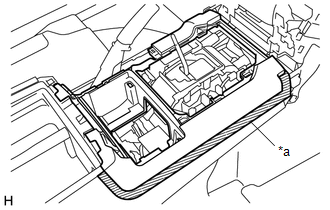

    GTY562440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the upper console panel subassembly.
      TEXT IN ILLUSTRATION

      *a Protective Tape

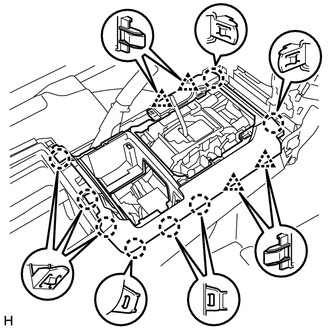

    2. GTY602514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 8 claws and 4 clips and remove the upper console panel subassembly.

  11. REMOVE REAR CONSOLE END PANEL SUBASSEMBLY

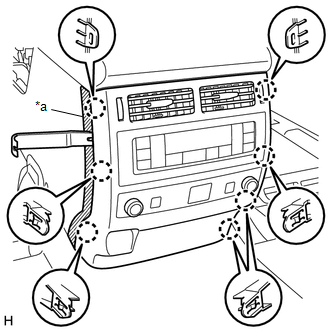

    GTY604888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the rear console end panel subassembly.
      TEXT IN ILLUSTRATION

      *a Protective Tape
    2. Using a moulding remover B, detach the 7 claws.
    3. Disconnect the connectors and detach the clamps and remove the rear console end panel subassembly.
  12. REMOVE DCM(TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 1 [08/2017 - ]

  13. REMOVE REAR CONSOLE BOX SUBASSEMBLY
    1. Remove the 2 screws and 4 bolts.
    2. Detach the 2 claws and remove the rear console box subassembly.

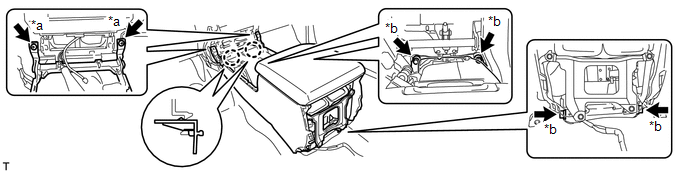

      GTY554340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Screw *b Bolt
