Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER
    1. Detach the 2 claws and 2 guides and remove the No. 2 forward recognition cover as shown in the illustration.

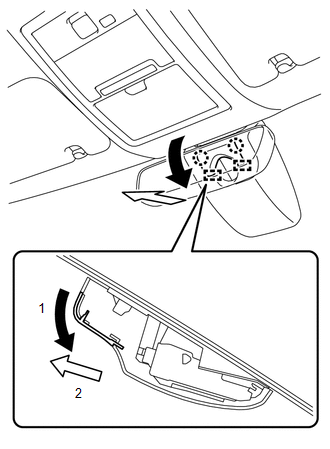

      GTY553612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If these claws are detached separately, they may break. Detach the claws simultaneously.

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER
    1. Detach the 2 clips and 2 guides and remove the No. 1 forward recognition cover as shown in the illustration.

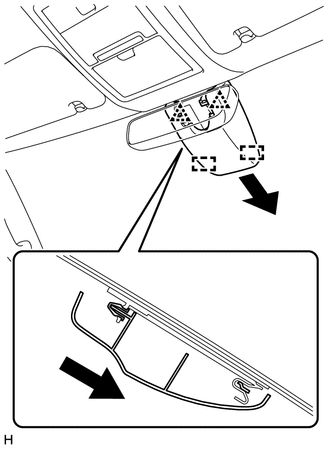

      GTY574573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Push the cover while keeping it parallel with the surface of the glass so as not to damage the clips and guides.

  3. REMOVE FORWARD RECOGNITION LATCH
    1. Detach the 2 claws and 4 guides and remove the forward recognition latch as shown in the illustration.

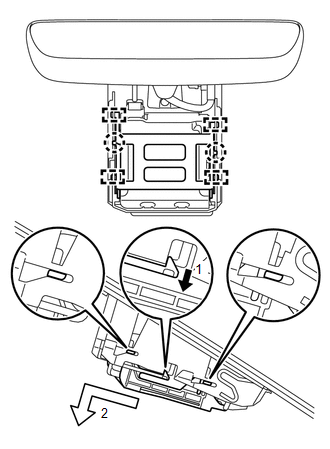

      GTY541107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FORWARD RECOGNITION CAMERA
    1. Disconnect the connector.

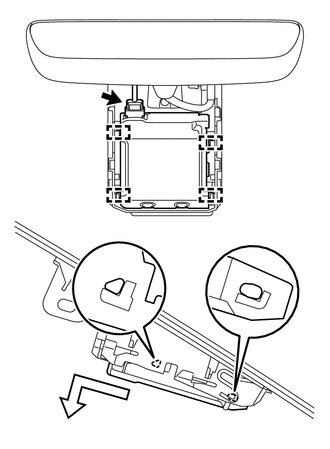

      GTY605563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 4 guides and remove the forward recognition camera as shown in the illustration.
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the forward recognition camera has been struck or dropped, replace it with a new one.
      • Do not apply excessive force.
  5. REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUBASSEMBLY (w/ Camera Heater)
    1. Disconnect the connector.
      GTY696328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the connector clamp.

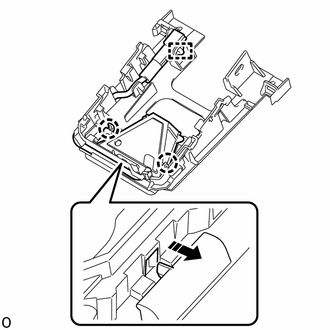

      GTY694487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the wire harness.
    4. Detach the guide and claw and remove the forward recognition with heater hood subassembly.
