Disassembly [11/2022 - 12/2024]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SYMBOL EMBLEM
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  2. REMOVE NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for AWD)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  3. REMOVE LUGGAGE COMPARTMENT DOOR NAME PLATE NO. 4 (for HV Model)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE NO. 2 BACK DOOR NAME PLATE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  5. REMOVE NO. 5 BACK DOOR NAME PLATE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  6. REMOVE NO. 4 BACK DOOR NAME PLATE (for Type A)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  7. REMOVE NO. 4 BACK DOOR NAME PLATE (for Type B)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  8. REMOVE NO. 4 BACK DOOR NAME PLATE (for Type C)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  9. REMOVE NO. 4 BACK DOOR NAME PLATE (for Type D)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 9

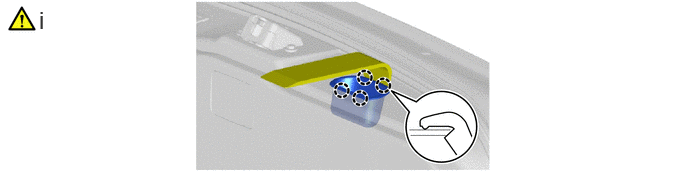

  10. REMOVE DOOR PULL HANDLE
    1. GTY1030941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover D, disengage the claws to remove the door pull handle.

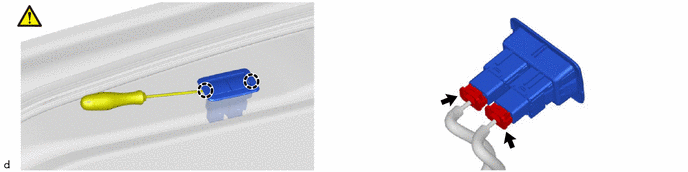

  11. REMOVE BACK DOOR INSIDE HANDLE BASE ASSEMBLY (w/ Power Back Door)
    1. GTY1031549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

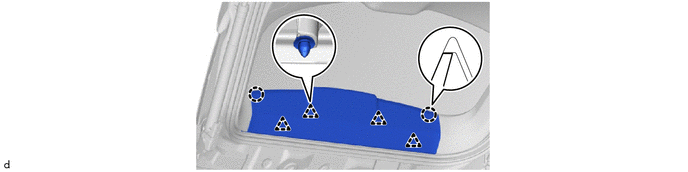

  12. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
    1. GTY1031556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

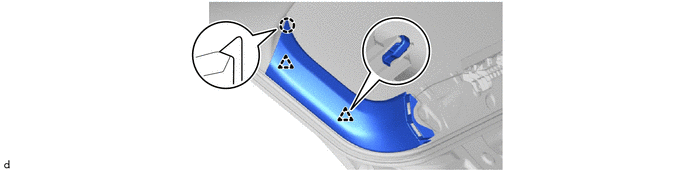

  13. REMOVE BACK DOOR SIDE GARNISH LH
    1. GTY1032054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

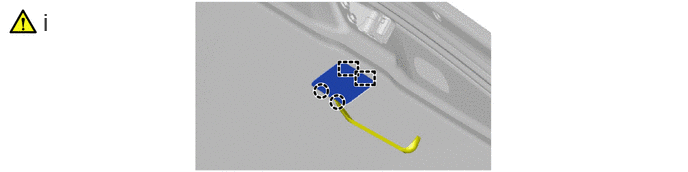

  15. REMOVE NO. 3 BACK DOOR SERVICE HOLE COVER
    1. GTY1031517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, disengage the claws and guides to remove the No. 3 back door service hole cover.

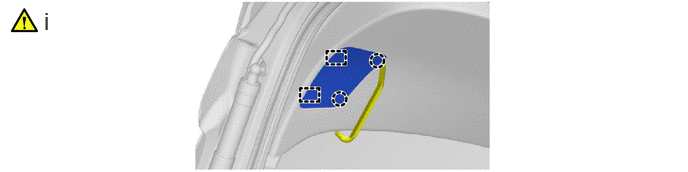

  16. REMOVE BACK DOOR SERVICE HOLE COVER LH
    1. GTY1031945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, disengage the claws and guides to remove the back door service hole cover LH.
  17. REMOVE BACK DOOR SERVICE HOLE COVER RH
    1. Use the same procedure as for the LH side.

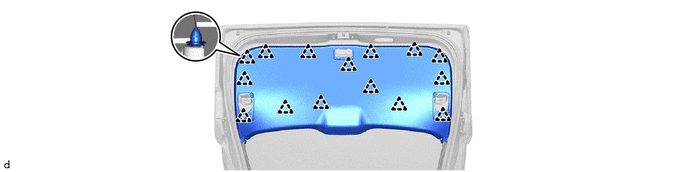

  18. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. GTY1031554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  20. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    See step  2

  21. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)
    1. Use the same procedure as for the LH side.
  22. REMOVE POWER BACK DOOR WARNING BUZZER (w/ Power Back Door)

    See step  5

  23. REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    See step  5

  24. REMOVE REAR WIPER ARM HEAD CAP (w/ Rear Wiper)

    Refer to PROCEDURE - Step 5

  25. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY (w/ Rear Wiper)

    Refer to PROCEDURE - Step 6

  26. REMOVE REAR WIPER MOTOR ASSEMBLY (w/ Rear Wiper)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  27. REMOVE REAR WIPER MOTOR GROMMET (w/ Rear Wiper)

    Refer to PROCEDURE - Step 8

  28. REMOVE REAR WASHER NOZZLE (w/ Rear Wiper)

    Refer to PROCEDURE - Step 2

  29. REMOVE BACK DOOR OUTSIDE GARNISH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  30. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 2

  31. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 5

  32. REMOVE REAR LIGHT ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to REMOVAL [09/2021 - ]
  33. REMOVE REAR LIGHT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  34. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

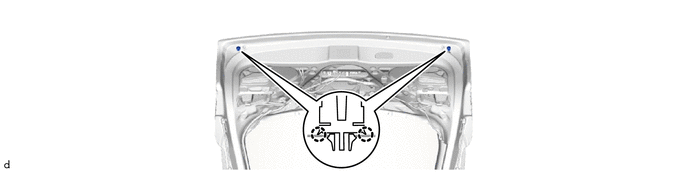

  35. REMOVE BACK DOOR PANEL CUSHION
    1. GTY1031878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

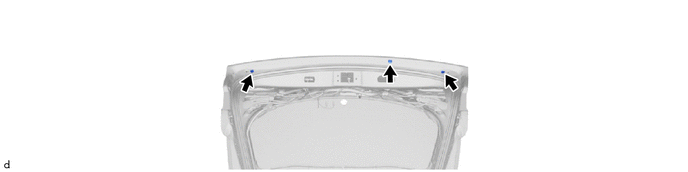

  36. REMOVE BACK DOOR DUST PROOF SEAL
    1. GTY1032100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
