Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE UPPER BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 12 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 12 [12/2024 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 13 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 13 [12/2024 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 18 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 18 [12/2024 - ]

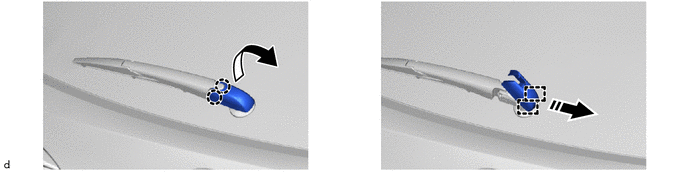

  5. REMOVE REAR WIPER ARM HEAD CAP
    1. GTY1033007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

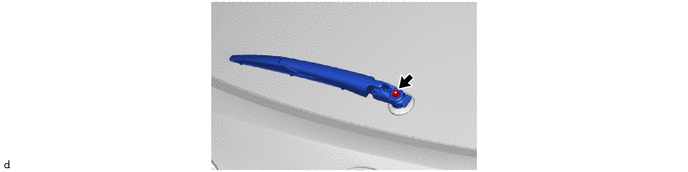

  6. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. GTY1032326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

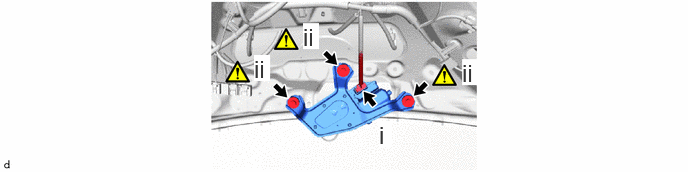

  7. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. GTY1033057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Loosen the 3 bolts to remove the rear wiper motor assembly.

        HINT:

        Remove the 3 bolt and rear wiper motor assembly as a set.

  8. REMOVE REAR WIPER MOTOR GROMMET
    1. GTY1032324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
