Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 12 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 12 [12/2024 - ]

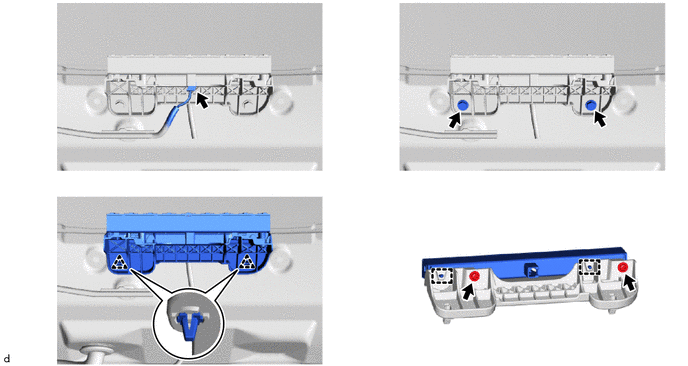

  2. REMOVE CENTER STOP LIGHT ASSEMBLY
    1. GTY1028215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
