Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 12 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 12 [12/2024 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 13 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 13 [12/2024 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 18 [11/2022 - 12/2024] , or refer to PROCEDURE - Step 18 [12/2024 - ]

  5. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

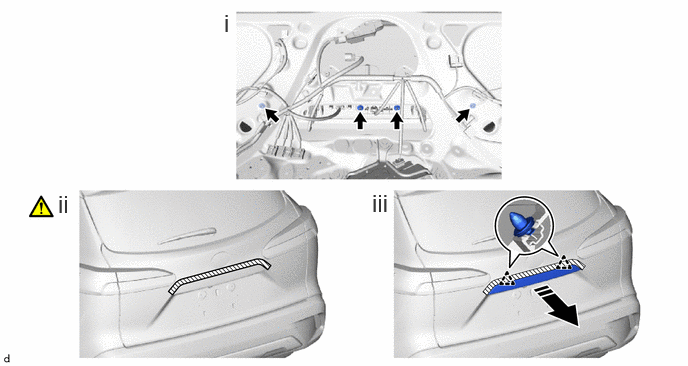

    1. GTY1030981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 4 nuts.
      2. Apply protective tape around the back door outside garnish sub-assembly as shown in the illustration.
      3. Disengage the clips to remove the back door outside garnish sub-assembly as shown in the illustration.
