Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2021 - ]

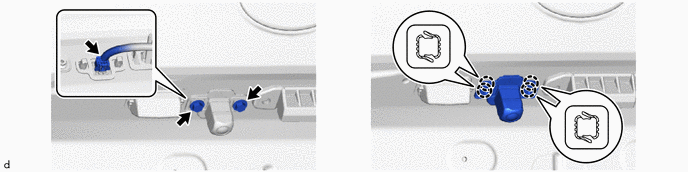

  2. REMOVE TELEVISION CAMERA ASSEMBLY
    1. GTY1030779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SCREW GROMMET
    1. GTY1031016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
