Disassembly [03/2017 - 09/2019]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

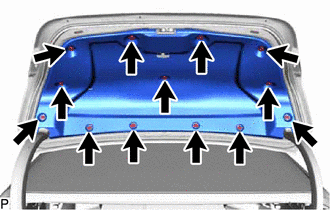

    1. Using a clip remover, remove the 13 clips and luggage compartment door cover.
      GTY760774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
    1. Remove the 2 clips and luggage compartment door hinge cover LH.
      GTY759377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH
    1. Remove the 2 clips and luggage compartment door hinge cover RH.
      GTY759376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 2 [06/2017 - 09/2019]

  5. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    1. Remove the 2 nuts and luggage compartment door lock cylinder assembly.
      GTY759378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 2 [06/2017 - ]

  7. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 3

  9. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  10. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

    See step  4

  11. REMOVE LICENSE PLATE LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 3

  12. REMOVE LICENSE PLATE LIGHT ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE LUGGAGE COMPARTMENT DOOR CUSHION
    1. Disengage the 8 claws to remove the 2 luggage compartment door cushions.
      GTY772677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SPOILER (w/ Rear Spoiler)

    Refer to PROCEDURE - Step 2

  15. REMOVE REAR SPOILER RETAINER (w/ Rear Spoiler)

    Refer to PROCEDURE - Step 3
