Removal [03/2017 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1 [03/2017 - 09/2019] , or refer to PROCEDURE - Step 1 [09/2019 - ]

  2. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 3

  3. REMOVE LICENSE PLATE LIGHT ASSEMBLY

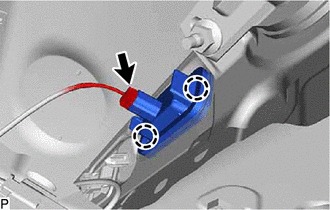

    1. Disconnect the connector.
      GTY763082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the license plate light assembly.
