Removal [03/2017 - 09/2019]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SPOILER

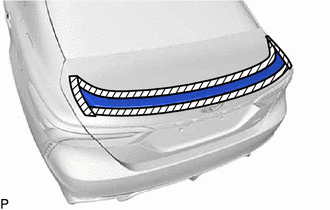

    1. Apply protective tape around the rear spoiler as shown in the illustration.
      GTY762323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

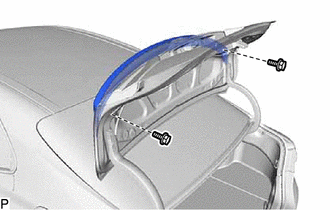

    2. Remove the 2 bolts.
      GTY759584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

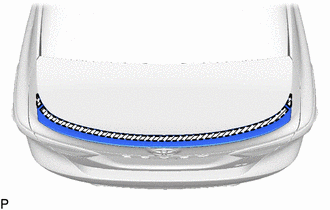

    3. Separate the double-sided tape and remove the rear spoiler.
      GTY765641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  3. REMOVE REAR SPOILER RETAINER

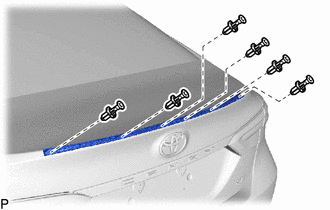

    1. Remove the 6 clips.
      GTY758188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

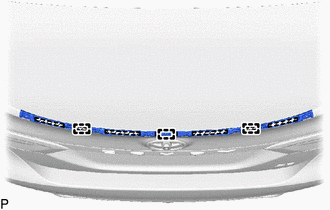

    2. Separate the double-sided tape and disengage the 3 guides to remove the rear spoiler retainer.
      GTY745179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
