Removal [03/2017 - 06/2017]: Procedure

Refer to PROCEDURE - Step 1

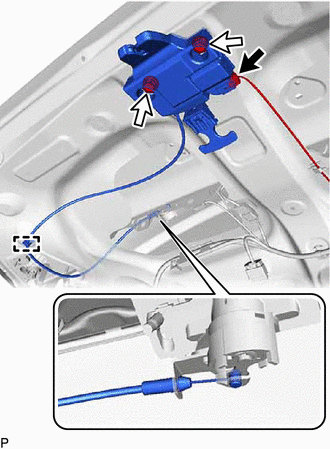

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp.
3. Disconnect the luggage door lock control cable sub-assembly from the luggage compartment door lock cylinder assembly.
4. Remove the 2 bolts and luggage compartment door lock assembly.

1. Disengage the claw as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Disengage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the cable to remove the luggage compartment door inside handle.
