Removal [06/2017 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1 [03/2017 - 09/2019] , or refer to PROCEDURE - Step 1 [09/2019 - ]

  2. REMOVE REAR LIGHT ASSEMBLY
    1. For Bulb Type Back-up Light:
      1. Disconnect the connector.

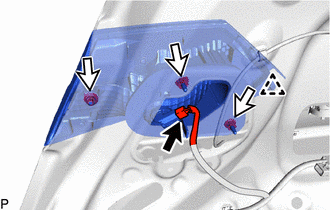

        GTY762423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 3 nuts.
      3. Disengage the clip to remove the rear light assembly.
    2. For LED Type Back-up Light:
      1. Disconnect the connector.

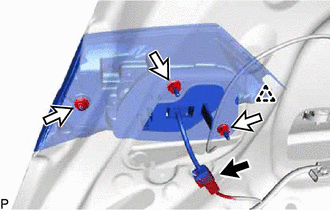

        GTY753306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 3 nuts.
      3. Disengage the clip to remove the rear light assembly.
