Disassembly [03/2017 - 06/2017]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [03/2017 - 06/2017]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [03/2017 - 06/2017]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

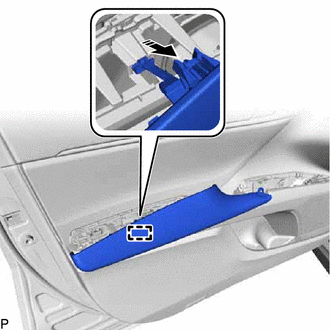

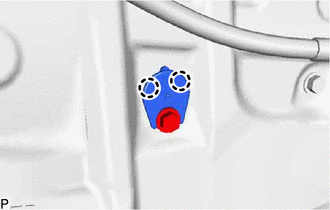

- REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
- REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY

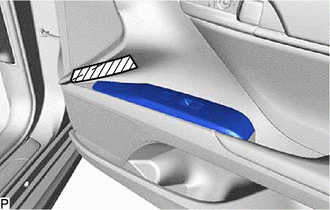

- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

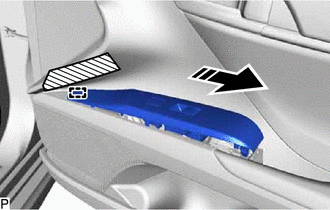

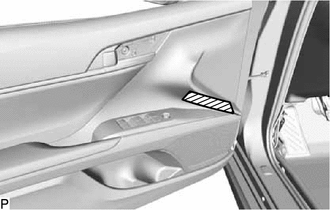

- Apply protective tape to the front door trim board sub-assembly as shown in the illustration.

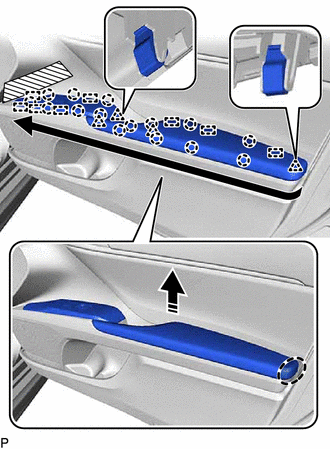

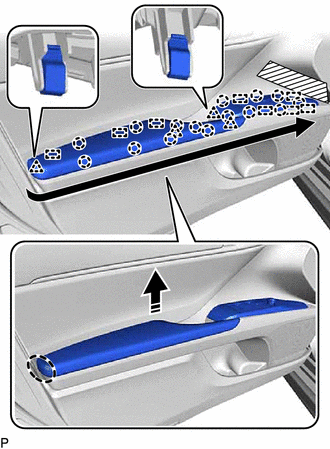

Protective Tape - Disengage the 3 clips, 15 claws and 8 guides as shown in the illustration.
Place Hand Here Remove in this Direction Order of Removal - Disengage the guide as shown in the illustration.
Remove in this Direction - Disconnect the connector to remove the multiplex network master switch assembly with front door upper armrest base panel.
- Apply protective tape to the front door trim board sub-assembly as shown in the illustration.
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
- Apply protective tape to the front door trim board sub-assembly as shown in the illustration.
Protective Tape - Disengage the 3 clips, 15 claws and 8 guides as shown in the illustration.

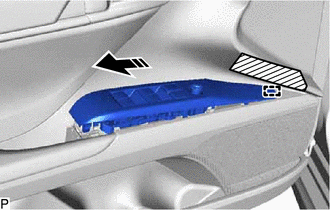

Place Hand Here Remove in this Direction Order of Removal - Disengage the guide as shown in the illustration.
Remove in this Direction - Disconnect the connector to remove the power window regulator switch assembly with front door upper armrest base panel.
- Apply protective tape to the front door trim board sub-assembly as shown in the illustration.
- REMOVE FRONT ARMREST ASSEMBLY
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

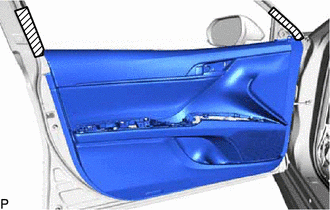

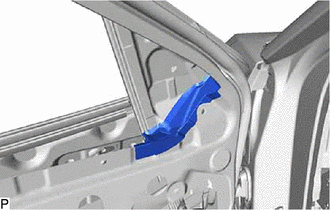

- Apply protective tape to the front door panel as shown in the illustration.

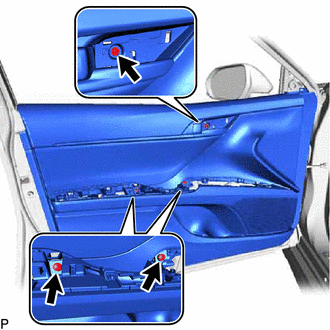

Protective Tape - Remove the 3 screws.

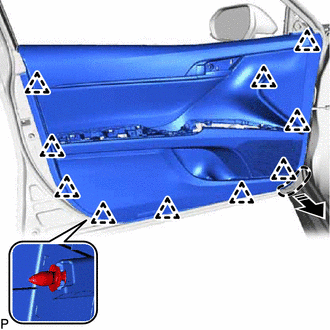

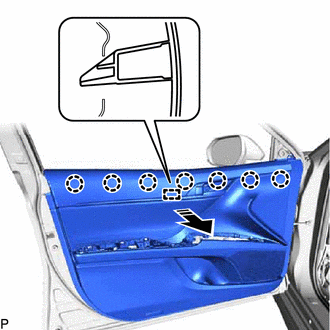

- Disengage the 10 clips as shown in the illustration.

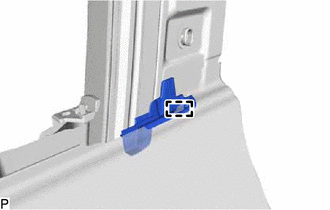

Place Hand Here Remove in this Direction - Disengage the 7 claws and guide as shown in the illustration.

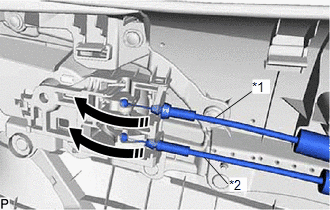

Remove in this Direction - Disconnect the front door lock remote control cable assembly and front door inside locking cable assembly to remove the front door trim board sub-assembly as shown in the illustration.
*1 Front Door Inside Locking Cable Assembly *2 Front Door Lock Remote Control Cable Assembly Remove in this Direction
- Apply protective tape to the front door panel as shown in the illustration.

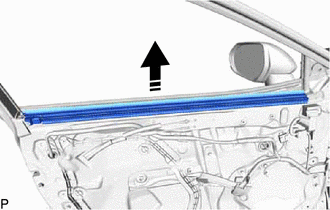

- REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP WITH FRONT DOOR VENT SEAL
- REMOVE FRONT DOOR VENT SEAL
- REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY

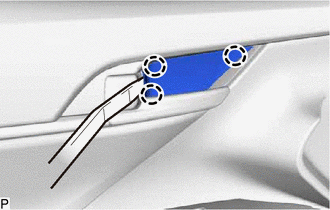

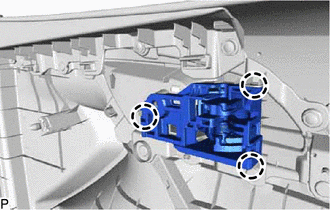

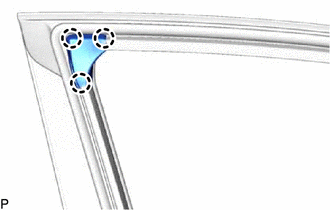

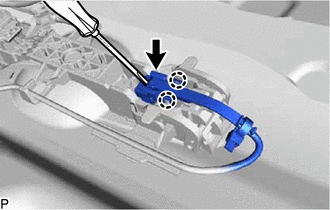

- Disengage the 3 claws to remove the front door inside handle sub-assembly.
- REMOVE HOLE PLUG
Refer to PROCEDURE - Step 8
- REMOVE OUTER MIRROR INSTALL HOLE COVER
Refer to PROCEDURE - Step 9
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER
Refer to PROCEDURE - Step 10
- REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 8

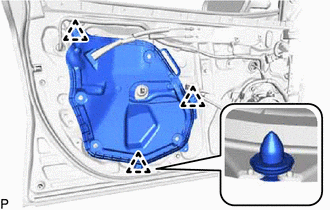

- REMOVE FRONT DOOR SERVICE HOLE COVER
- REMOVE DOOR SIDE AIRBAG SENSOR
Refer to PROCEDURE - Step 11
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

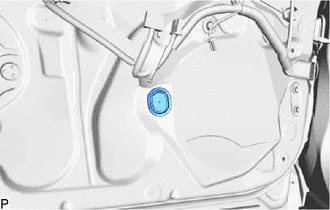

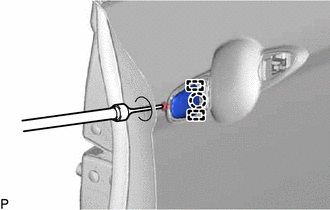

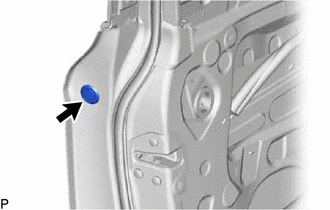

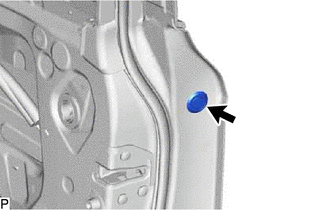

- Remove the hole plug.
- For Driver Side:
- Connect the multiplex network master switch assembly.
- For Front Passenger Side:
- Connect the power window regulator switch assembly.
- Connect the cable to the negative (-) battery terminal.
- Turn the ignition switch to ON.
- Move the front door glass sub-assembly so that the door glass bolts can be seen.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal.
- For Driver Side:
- Disconnect the multiplex network master switch assembly.
- For Front Passenger Side:
- Disconnect the power window regulator switch assembly.

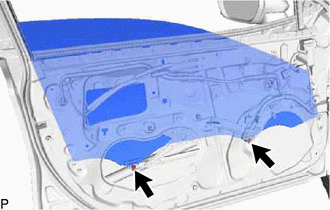

- Remove the 2 bolts.NOTE:
After the bolts are removed, do not allow the front door glass sub-assembly to fall.

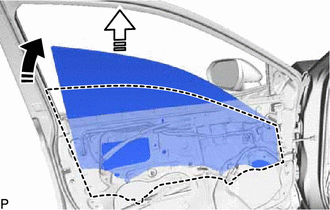

- Remove the front door glass sub-assembly as indicated by the arrows, in the order shown in the illustration.
Remove in this Direction (1) Remove in this Direction (2) NOTE:Do not damage the front door glass sub-assembly.

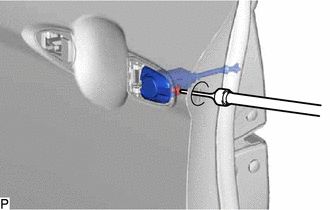

- Remove the hole plug.
- REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY

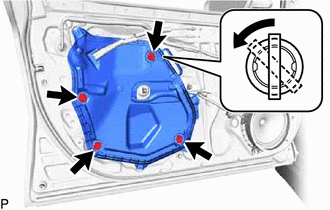

- Disengage the 2 claws to remove the front door No. 2 service hole cover.
- Disconnect the connector.

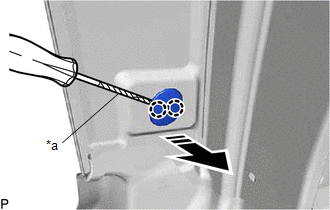

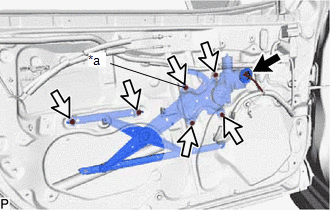

*a Temporary Bolt - Loosen the temporary bolt.NOTE:
Do not remove the temporary bolt. If the temporary bolt is removed, the front door window regulator assembly may fall and cause damage.
- Remove the 5 bolts.
- Remove the front door window regulator assembly.
- Remove the temporary bolt from the front door window regulator assembly.
- Disengage the 2 claws to remove the front door No. 2 service hole cover.
- REMOVE FRONT DOOR PANEL PROTECTOR

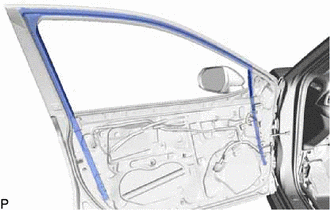

- REMOVE FRONT DOOR GLASS RUN

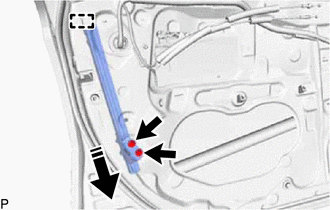

- REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

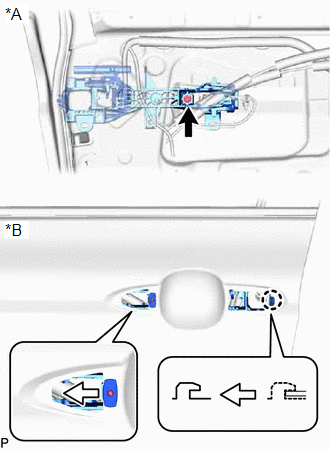

- REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY
- REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

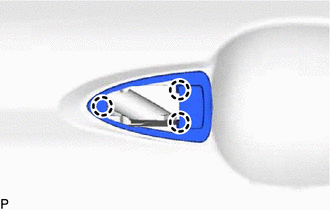

- REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

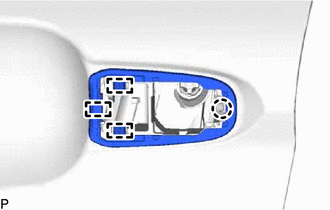

- REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD

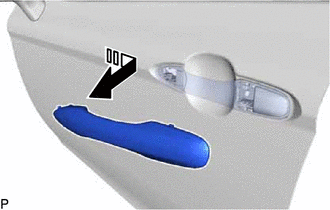

- REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD

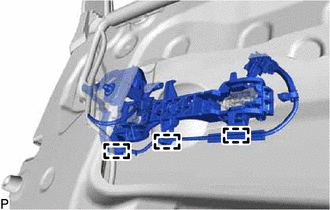

- REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY
Refer to PROCEDURE - Step 18
- REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

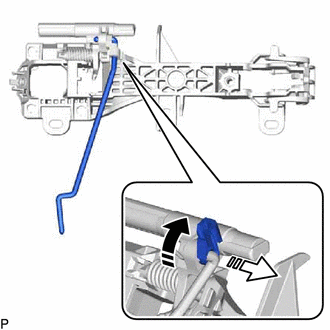

- REMOVE FRONT DOOR LOCK OPEN ROD

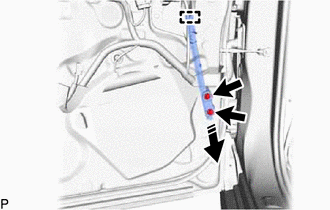

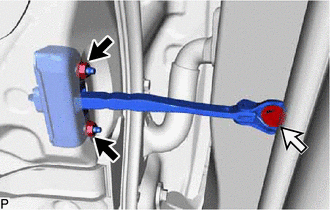

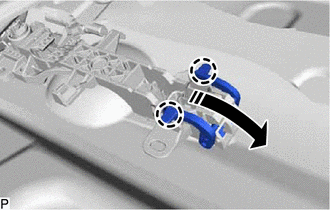

- REMOVE FRONT DOOR CHECK ASSEMBLY

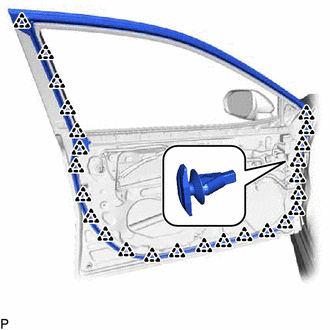

- REMOVE FRONT DOOR WEATHERSTRIP

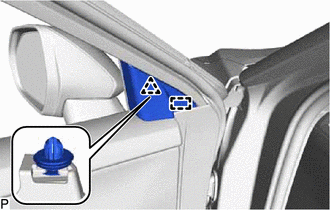

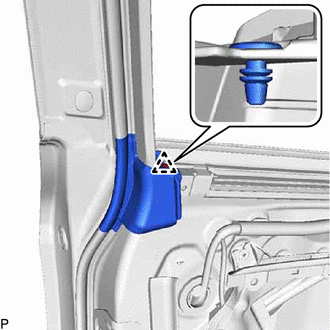

- REMOVE DOOR FRAME GARNISH
- REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

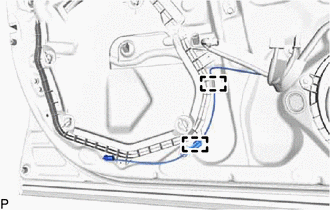

- REMOVE FRONT DOOR PANEL CUSHION

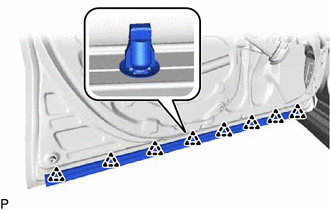

- REMOVE FRONT DOOR NO. 2 WEATHERSTRIP
- REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - Step 13
- REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER
Refer to PROCEDURE - Step 2

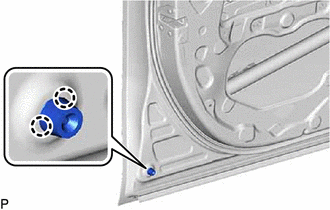

- REMOVE DOOR WINDOW FRAME MOULDING CLIP
- REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 5
- REMOVE FRONT DOOR REAR OUTSIDE SEAL
- REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING
Refer to PROCEDURE - Step 6
- REMOVE FRONT DOOR NO. 2 STRIPE
Refer to PROCEDURE - Step 17
- REMOVE FRONT DOOR NO. 3 STRIPE
Refer to PROCEDURE - Step 18
