Removal [03/2017 - ]: Procedure

  1. REMOVE COURTESY LIGHT ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

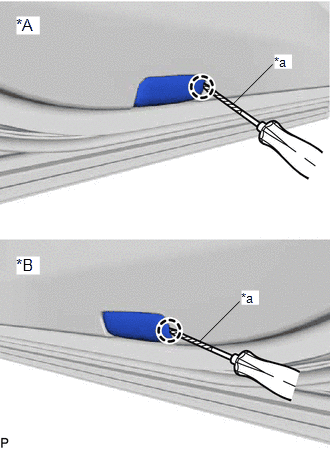

      GTY744051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For LH Side
      *B For RH Side
      *a Protective Tape
    2. Disconnect the connector to remove the courtesy light assembly.
  2. REMOVE COURTESY LIGHT BULB
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the courtesy light housing with the courtesy light cover as shown in the illustration.
      GTY586326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Remove the courtesy light cover from the courtesy light housing as shown in the illustration.
      GTY593777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the courtesy light bulb from the courtesy light housing as shown in the illustration.
      GTY538922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
