Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 3

  2. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5

  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE HOLE PLUG

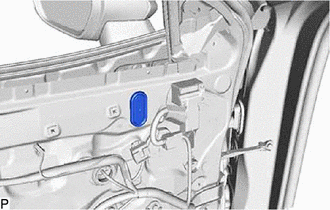

    1. Remove the hole plug.
      GTY769954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE OUTER MIRROR INSTALL HOLE COVER

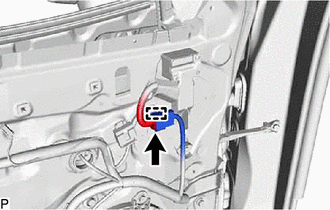

    1. Disconnect the connector.
      GTY747015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

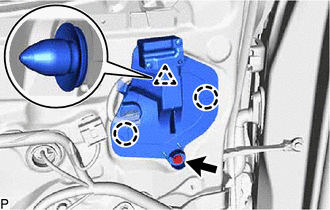

    2. Disengage the clamp.
    3. Remove the screw.
      GTY747014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clip and 2 claws to remove the outer mirror install hole cover.
  10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

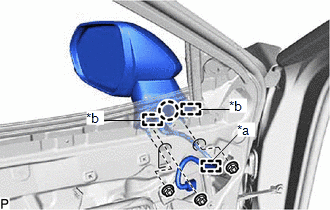

    1. Disengage the clamp.
      GTY773755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the 3 nuts.
    3. Disengage the claw and 2 guides and remove the outer rear view mirror assembly with cover.
