Removal [03/2017 - 06/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 06/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 6

  7. REMOVE FRONT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP WITH FRONT DOOR VENT SEAL

    Refer to PROCEDURE - Step 10

  11. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 17

  12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  13. REMOVE FRONT DOOR PANEL PROTECTOR

    Refer to PROCEDURE - Step 21

  14. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 22

  15. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  16. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 24

  17. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 25

  18. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

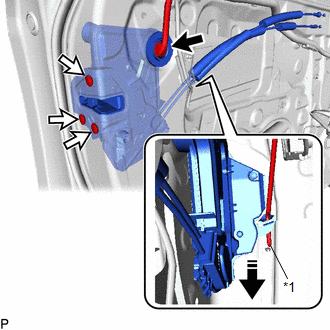

    1. Disconnect the connector.
      GTY773520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
    3. Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.
    4. When reusing the front door lock with motor assembly:

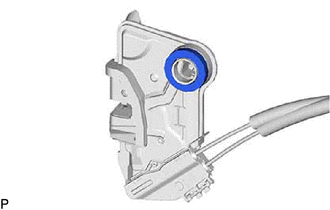

      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
        GTY746627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

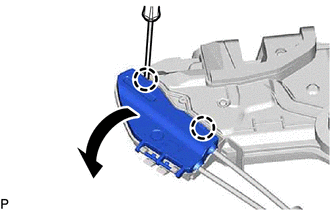

    1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      GTY746630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

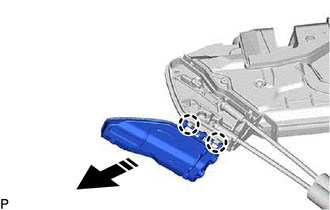

    2. Disengage the 2 claws to remove the front door lock cover sub-assembly as shown in the illustration.
      GTY745222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

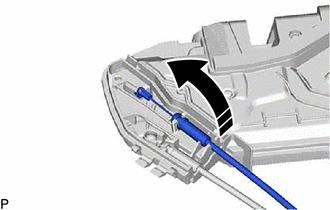

    1. Remove the front door lock remote control cable assembly as shown in the illustration.
      GTY746733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

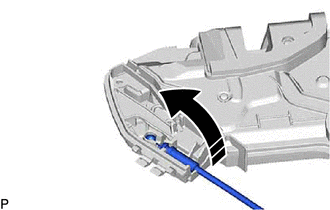

    1. Remove the front door inside locking cable assembly as shown in the illustration.
      GTY748877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
