Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

    Refer to REMOVAL [03/2017 - 06/2017]

  2. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER

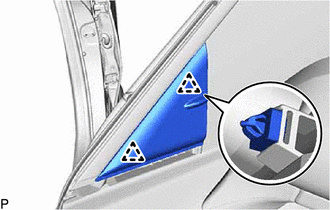

    1. Disengage the 2 clips to remove the front door front lower frame upper cover.
      GTY746574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
