Installation [03/2017 - 09/2019]: Procedure

INSTALL DCM (TELEMATICS TRANSCEIVER)

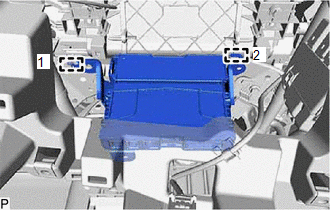

Engage the 2 guides in the order shown in the illustration to temporarily install the DCM (telematics transceiver).

Install the DCM (telematics transceiver) with the 2 bolts.
Engage the clamp.
Connect the 5 connectors.

INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
Refer to PROCEDURE - Step 7 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 10 [06/2017 - 10/2020]
INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)
Refer to PROCEDURE - Step 8 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 11 [06/2017 - 10/2020]
INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)
Refer to PROCEDURE - Step 1
INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 20 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 20 [06/2017 - 10/2020]
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 21 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 21 [06/2017 - 10/2020]
INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 10 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 10 [06/2017 - 09/2019]
INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 12 [06/2017 - 09/2019]
INSTALL NO. 1 METER HOOD CLUSTER
Refer to PROCEDURE - Step 13 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 13 [06/2017 - 09/2019]
PERFORM DCM ACTIVATION
HINT:

When replacing the DCM (telematics transceiver), perform DCM activation.

Refer to DCM ACTIVATION [03/2017 - 09/2019]
PERFORM REGISTRATION
for Toyota Entune Remote Connect Compatible Type:

HINT:

When replacing the DCM (telematics transceiver), perform code registration (Smart key System (for Start Function)).

Refer to REGISTRATION [03/2017 - 09/2019]
