Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL CONSOLE BOX ASSEMBLY
    1. Install the console box assembly with the 4 bolts and 2 screws.
  2. INSTALL CONSOLE BOX CARPET

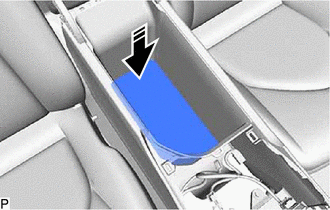

    1. Install the console box carpet as shown in the illustration.
      GTY765646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

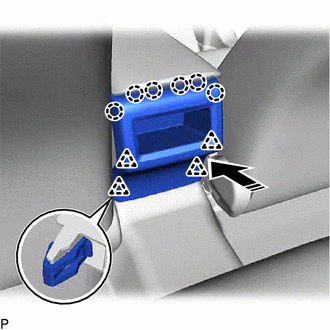

    1. Engage the 6 claws and 4 clips to install the console rear end panel sub-assembly as shown in the illustration.
      GTY757020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL INSTRUMENT PANEL CUP HOLDER
    1. Engage the 2 claws.
    2. Install the instrument panel cup holder with the 3 screws.
  5. INSTALL FRONT CONSOLE BOX INSERT SUB-ASSEMBLY
    1. Install the front console box insert sub-assembly with the 5 screws.
  6. INSTALL SHIFT POSITION INDICATOR

    Refer to PROCEDURE - Step 2

  7. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect each connector.
    2. Engage the clamp.

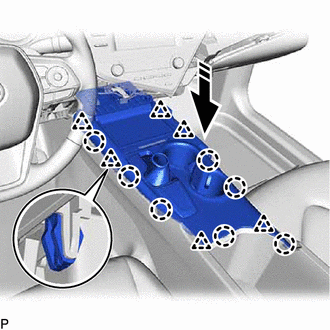

    3. Engage the 6 clips and 7 claws to install the rear upper console panel sub-assembly as shown in the illustration.
      GTY746835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Move the shift lever to P.
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL SHIFT LOCK RELEASE BUTTON COVER

    Refer to PROCEDURE - Step 5

  10. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Connect each connector.
    2. Engage the clamp.

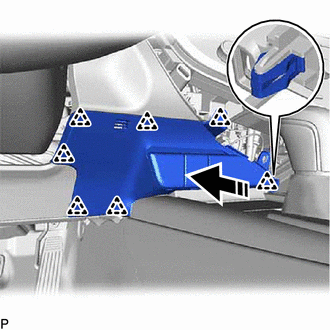

    3. Engage the 7 clips to install the lower center instrument panel finish panel as shown in the illustration.
      GTY743634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL INSTRUMENT PANEL FINISH PLATE GARNISH

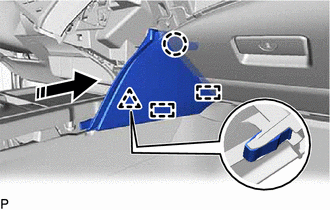

    1. Engage the 2 guides, claw and clip to install the instrument panel finish plate garnish as shown in the illustration.
      GTY760419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  12. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

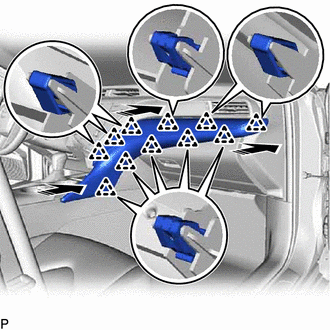

    1. Engage the 11 clips to install the No. 2 instrument panel garnish sub-assembly as shown in the illustration.
      GTY757865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL NO. 1 METER HOOD CLUSTER
    1. Connect the connector.

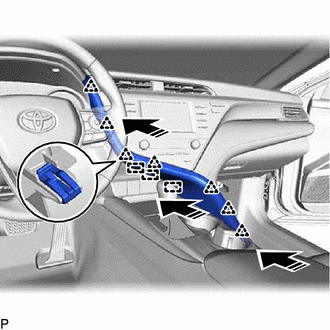

    2. Engage the 3 guides and 7 clips to install the No. 1 meter hood cluster as shown in the illustration.
      GTY751790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
