Removal [06/2015 - ]: Procedure

  1. REMOVE PROTECTOR
    1. Disengage the claws to remove the protector.

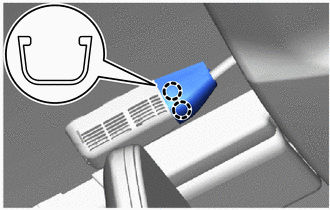

      GTY560545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY (HUMIDITY SENSOR)
    1. Disconnect the connector.

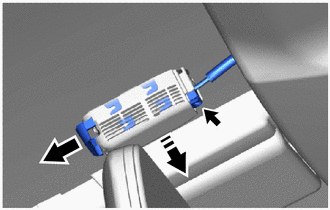

      GTY560979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Drawer Direction.
      Remove in this Direction
    2. Pull out the stopper in the direction indicated by the arrows in the illustration to release the lock, and remove the air conditioning thermistor assembly (humidity sensor).
