Replacement [06/2015 - ]: Procedure

REMOVE MAP LIGHT ASSEMBLY

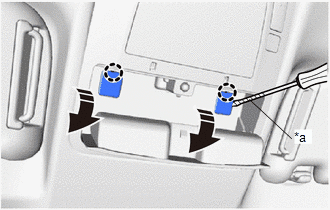

Using a screwdriver with its tip wrapped in protective tape, disengage the claws to open the 2 covers as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Remove in this Direction

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

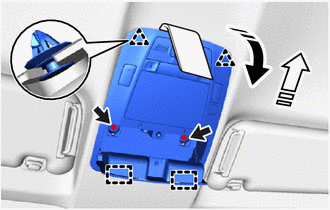

Using a molding remover D, disengage the clips and guides to separate the map light assembly as shown in the illustration.

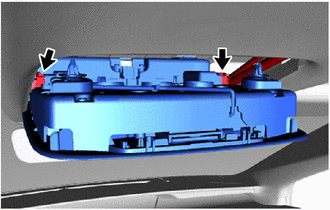

Disconnect the 2 connectors to remove the map light assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE MAP LIGHT BULB

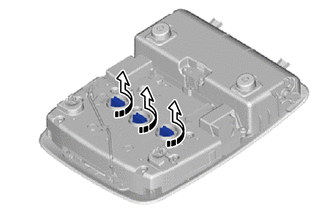

Turn the 3 map light sockets with the 3 map light bulbs as shown in the illustration to remove them as a unit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Remove the 3 map light bulbs from the 3 map light bulb sockets as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

INSTALL MAP LIGHT BULB

Install the 3 map light bulbs to the 3 map light bulb sockets as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

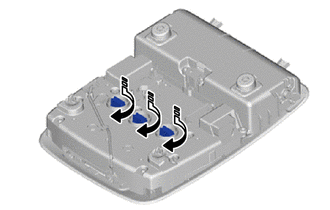

Turn the 3 map light sockets with the 3 map light bulbs as shown in the illustration to install them as a unit.

Install in this Direction

INSTALL MAP LIGHT ASSEMBLY

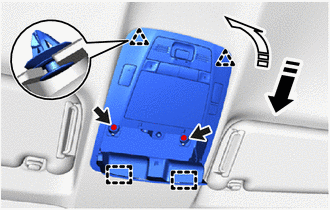

Engage the guides and clips to install the map light assembly as shown in the illustration.

	Install in this Direction (1)
	Install in this Direction (2)

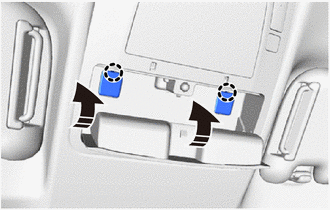

Engage the claws to close the 2 covers as shown in the illustration.

Install in this Direction
