Removal [06/2015 - ]: Procedure

  1. REMOVE VANITY LIGHT ASSEMBLY

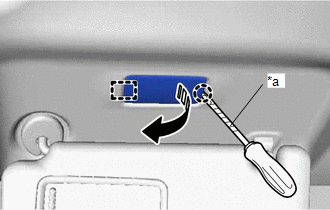

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guide as shown in the illustration.
      GTY541057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

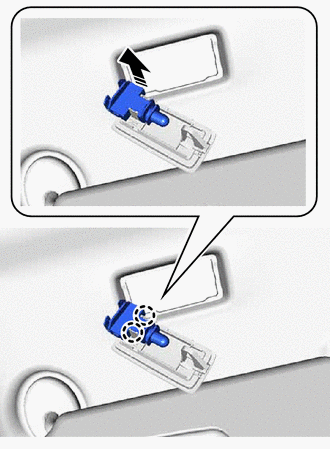

    2. Disengage the claws to remove the vanity light assembly as shown in the illustration.
      GTY598259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE VANITY LIGHT BULB
    GTY563373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Remove in this Direction
    1. Remove the vanity light bulb as shown in the illustration.
