Removal [06/2015 - ]: Procedure

  1. REMOVE RAIN SENSOR

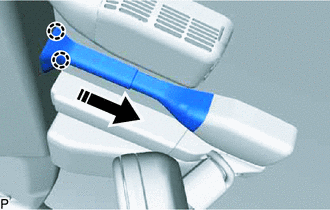

    1. Disengage the claws and slide the rain sensor cover as shown in the illustration.
      GTY557299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

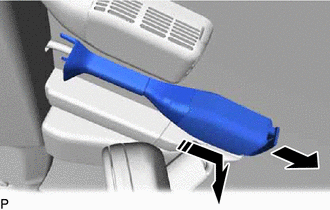

    2. Pull out the stopper in the direction indicated by the arrows in the illustration to release the lock.
      GTY565241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Release
      Remove in this Direction
    3. Remove the rain sensor and rain sensor cover as shown in the illustration.

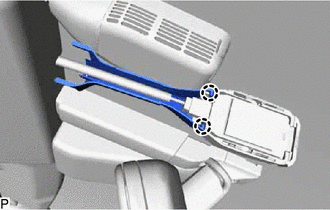

    4. Disengage the claws to remove the rain sensor cover as shown in the illustration.
      GTY557309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

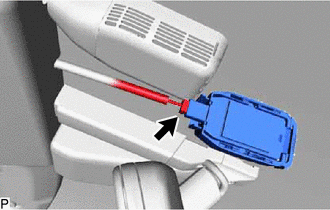

    5. Disconnect the connector to remove the rain sensor.
      GTY557308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
