Removal [11/2017 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Refer to PRECAUTION [12/2015 - ]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [11/2017 - ] ).

  3. REMOVE TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System)

    (Refer to REMOVAL [12/2015 - ] )

  4. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Disengage the 12 claws to remove the front door scuff plate RH.
      GTY301413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  6. REMOVE COWL SIDE TRIM BOARD RH
    1. Remove the clip.
      GTY306841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and clip to remove the cowl side trim board RH.
  7. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

  8. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  9. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  10. REMOVE FRONT PILLAR GARNISH RH
    1. Separate the front pillar garnish clip from the front pillar garnish RH.
      GTY475802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Pillar Garnish Clip
    2. Disengage the clip.
    3. Press the 2 areas indicated by the arrows in the illustration.
      GTY472481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the front pillar garnish clip and 3 guides to remove the front pillar garnish RH.
    5. Remove the front pillar garnish clip from the front pillar garnish RH.
    6. Protect the curtain shield airbag assembly.
      GTY719404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adhesive Tape
      *2 Protective Cover
      1. Cover the airbag with a cloth or piece of nylon and secure the ends of the cover with tape, as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

  11. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  12. REMOVE FRONT PILLAR LOWER GARNISH RH
    GTY300342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws to remove the front pillar lower garnish RH.
  13. REMOVE FRONT PILLAR LOWER GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  14. REMOVE REAR DOOR SCUFF PLATE RH
    1. Disengage the 4 claws, 7 clips and guide to remove the rear door scuff plate RH.
      GTY472480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  16. SEPARATE NO. 1 SLIDE DOOR WEATHERSTRIP RH
  17. SEPARATE NO. 1 SLIDE DOOR WEATHERSTRIP LH
  18. REMOVE BACK DOOR SCUFF PLATE
    GTY300429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws to open the flap.
    2. Remove the bolt.
    3. Disengage the 2 claws to remove the hook cover assembly.

      HINT:

      Use the same procedure for the other 2 hook covers.

    4. Disengage the 6 clips and 2 guides to remove the back door scuff plate.
      GTY306840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. SEPARATE BACK DOOR WEATHERSTRIP
  20. REMOVE ROOF HEADLINING REAR GARNISH
    1. Disengage the 2 claws and the 6 clips to remove the roof headlining rear garnish.
      GTY300343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CENTER PILLAR LOWER GARNISH RH
    1. Disengage the 3 claws to remove the anchor cover.
      GTY300352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt to disconnect the front seat outer belt RH on the floor anchor side.
      GTY300355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and 2 clips to remove the center pillar lower garnish RH.
      GTY300357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE CENTER PILLAR LOWER GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  23. REMOVE CENTER PILLAR UPPER GARNISH RH
    GTY479550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/ Power Slide Door:
      1. Using a moulding remover, disengage the 4 claws to remove the power slide door control switch.
      2. Disconnect the connector.
    2. Remove the screw.
      GTY306599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips to remove the center pillar upper garnish RH.
  24. REMOVE CENTER PILLAR UPPER GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  25. SEPARATE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH
    1. Disengage the 3 claws to remove the anchor cover.
      GTY300359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt to disconnect the rear No. 2 seat outer belt RH on the floor anchor side.
      GTY300354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws to open the anchor cover.
      GTY301414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and shoulder anchor.
      GTY300358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. SEPARATE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  27. REMOVE QUARTER TRIM PANEL ASSEMBLY RH
    GTY542616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 9 claws and 8 clips.
    2. Disconnect the connectors to remove the quarter trim panel assembly RH.
  28. REMOVE QUARTER TRIM PANEL ASSEMBLY LH
    GTY542617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 11 claws and 8 clips.
    2. Disconnect the connectors to remove the quarter trim panel assembly LH.
  29. REMOVE REAR NO. 2 WINDOW SIDE GARNISH ASSEMBLY RH
    GTY300361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 8 claws to remove the belt hole cover.
    2. Depress the center portion of the trim hook, disengage the 2 claws to remove the trim hook.
      GTY300360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 clips.
      GTY301347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connectors to remove the rear No. 2 window side garnish assembly RH.
  30. REMOVE REAR NO. 2 WINDOW SIDE GARNISH ASSEMBLY LH
    1. Depress the center portion of the trim hook, disengage the 2 claws to remove the trim hook.
    2. Disengage the 5 clips to remove the rear No. 2 window side garnish assembly LH.
      GTY301326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR WINDOW SIDE GARNISH ASSEMBLY RH
    1. w/ Rear No. 1 Seat Belt:
      1. Disengage the 2 claws to remove the anchor cover.
        GTY692779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the bolt to disconnect the rear No. 1 seat outer belt.
        GTY296910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to open the cover.
      GTY300362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt.
      GTY300367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 clips to remove the rear window side garnish assembly RH.
  32. REMOVE REAR WINDOW SIDE GARNISH ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  33. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for both assist grip sub-assemblies.

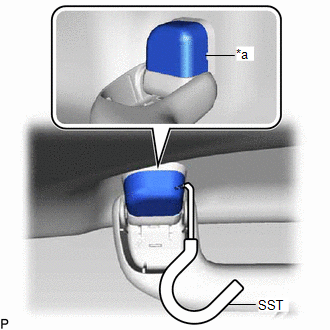

    1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
      GTY769987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      • SST: 09813-00010
      NOTE:

      To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.

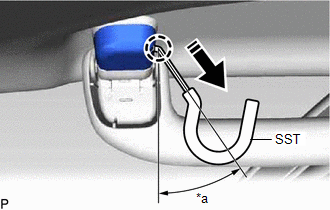

    2. Pull SST as shown in the illustration to disengage the claw.
      GTY752233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction
      NOTE:

      To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.

    3. Remove the assist grip cover.

      HINT:

      Use the same procedures for the opposite side.

    4. Disengage the 2 clips to remove the assist grip sub-assembly.
      GTY300345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 clips from the vehicle body.
  34. REMOVE REAR ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for all rear assist grip assemblies.

    1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
      GTY769987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      • SST: 09813-00010
      NOTE:

      To prevent the rear assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

    2. Pull SST as shown in the illustration to disengage the claw.
      GTY752233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction
      NOTE:

      To prevent the rear assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

    3. Remove the assist grip cover.

      HINT:

      Use the same procedures for the opposite side.

    4. Disengage the 2 clips to remove the rear assist grip assembly.
      GTY300346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 clips from the vehicle body.
  35. REMOVE VISOR ASSEMBLY RH

    Refer to PROCEDURE - Step 1

  36. REMOVE VISOR ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  37. REMOVE VISOR HOLDER
    1. Remove the screw and visor holder.
      GTY216460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (for EC Mirror without Toyota Safety Sense)

    Refer to PROCEDURE - Step 3

  39. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  40. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Toyota Safety Sense)

    Refer to PROCEDURE - Step 1

  41. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Toyota Safety Sense)

    Refer to PROCEDURE - Step 2

  42. REMOVE ROOF CONSOLE BOX ASSEMBLY

    Refer to PROCEDURE - Step 1

  43. REMOVE NO. 6 REAR AIR DUCT
    GTY300364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and outer belt anchor bracket.
    2. Disengage the 2 claws to remove the cooler plate.
      GTY300341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 6 rear air duct.
      GTY300340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the connectors.
    2. Disconnect the 2 washer hoses.
    3. w/o Rear Sliding Roof:
      GTY306601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a clip remover, remove the 3 clips to roof headlining assembly.
    4. w/ Rear Sliding Roof:
      1. Using a clip remover, remove the clip to roof headlining assembly.
    5. Remove the roof headlining assembly from the vehicle through the back door.
      GTY300366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or body interior.
