Removal [12/2015 - 11/2017]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

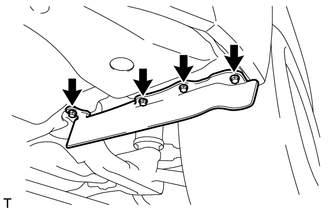

1. Remove the 4 screws and front wheel opening extension pad.

HINT:

Use the same procedure as for the LH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

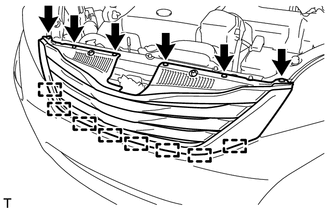

1. Remove the 6 clips.
2. Disengage the 8 guides and remove the radiator grille.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

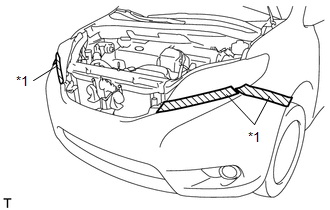

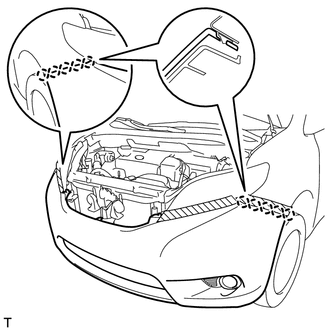

1. Apply protective tape, as shown in the illustration.
   TEXT IN ILLUSTRATION



   *1	Protective Tape

2. Using a screwdriver, remove the pin hold clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the remaining parts.

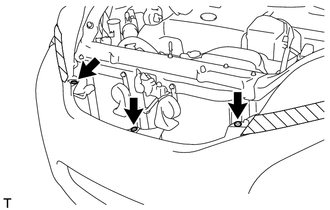

3. Remove the screw.

   HINT:

   Use the same procedure for the remaining parts.

4. Remove the 3 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

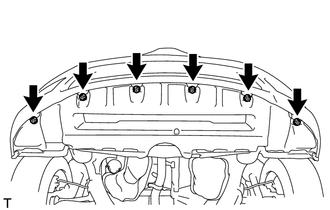

5. Remove the 6 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Disengage the 10 claws and remove the front bumper cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Disconnect the connectors.

   HINT:

   If the vehicle is equipped with fog lights, disconnect the connector.
