Removal [12/2015 - 11/2017]: Procedure

  1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

    (Refer to PROCEDURE - Step 3 )

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

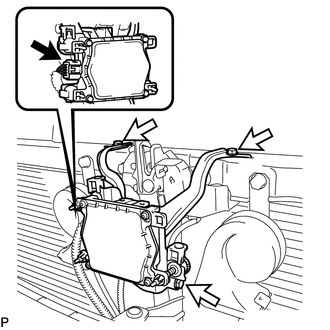

    1. Disconnect the connector.
      GTY732573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and the millimeter wave radar sensor assembly.
