Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 1

  2. INSTALL KNOCK SENSOR

    Refer to PROCEDURE - Step 1

  3. INSTALL KNOCK SENSOR WIRE
    1. Connect the 2 clamps, 2 knock sensor connectors and knock sensor wire connector.
  4. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Clean the threads of the oil pressure switch. Apply adhesive to 2 or 3 threads of the oil pressure switch assembly.
      GTY692820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adhesive

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

    2. Using a deep socket wrench, install the oil pressure switch.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      NOTE:

      Do not start the engine within 1 hour after installation to prevent oil leaks.

  5. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY
    1. Install the No. 1 vacuum switching valve with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  6. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  7. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Install the idler pulley cover plate, No. 2 idler pulley sub-assembly and No. 2 idler pulley cover plate with the bolt.

      Torque: 54 N*m (550 kgf*cm, 40 ft.*lbf)

  8. INSTALL NO. 2 TIMING GEAR COVER
    1. Install the No. 2 timing gear cover with the 2 bolts.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  9. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY
    1. Temporarily install the V-ribbed belt tensioner assembly with the 5 bolts.

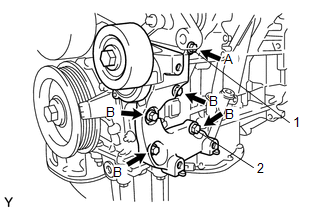

      Fig 1: V-Ribbed Belt Tensioner Assembly Tightening Sequence
      GTY695331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Each bolt length is as follows:

      A: 70 mm (2.76 in.)

      B: 33 mm (1.30 in.)

    2. Install the V-ribbed belt tensioner assembly by tightening the bolt 1 and bolt 2 in the order shown in the illustration.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    3. Tighten the other bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  10. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH

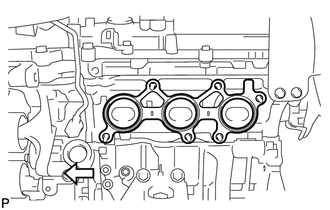

    1. Install a new gasket as shown in the illustration.
      GTY295908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Engine Front
    2. Install the exhaust manifold sub-assembly LH with the 6 nuts in the order shown in the illustration.

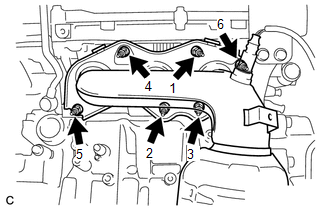

      Fig 2: Exhaust Manifold Sub-Assembly Tightening Sequence
      GTY733438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  11. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  12. INSTALL NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 5

  13. INSTALL NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Install a new O-ring to the No. 2 engine oil level dipstick guide.
    2. Apply a light coat of engine oil to the O-ring.
    3. Push in the No. 2 engine oil level dipstick guide end into the engine oil level dipstick guide.
    4. Install the No. 2 engine oil level dipstick guide with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    5. Install the engine oil level dipstick.
  14. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH

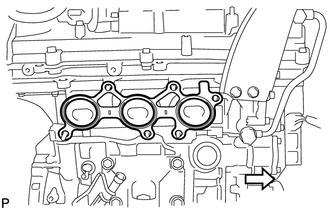

    1. Install a new gasket as shown in the illustration.
      GTY295910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Engine Front
    2. Install the exhaust manifold sub-assembly RH with the 6 nuts in the order shown in the illustration.

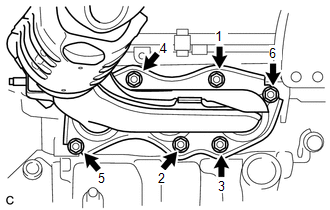

      Fig 3: Exhaust Manifold Sub-Assembly Tightening Sequence
      GTY690417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  15. INSTALL INTAKE MANIFOLD
    NOTE:

    DO NOT apply oil to the bolts listed below:

    Tightening Part
    Intake Manifold and Cylinder Head Sub-assembly RH
    Intake Manifold and Cylinder Head Sub-assembly LH
    1. Set a new gasket on each cylinder head.
      NOTE:
      • Align the port holes of the gasket and cylinder head.
      • Make sure that the gasket is installed in the correct direction.
    2. Set the intake manifold on the cylinder heads.
    3. Install and tighten the 6 bolts and 4 nuts uniformly in several steps.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  16. INSTALL FUEL HOSE PROTECTOR
    1. Install the fuel hose protector with the 2 bolts and nut.

      Bolt

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Nut

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  17. INSTALL NO. 2 ENGINE MOUNTING STAY RH
    1. Install the No. 2 engine mounting stay RH with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  18. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  19. INSTALL NO. 1 SURGE TANK STAY
    1. Install the No. 1 surge tank stay with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  20. INSTALL THROTTLE BODY BRACKET
    1. Install the throttle body bracket with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  21. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 6

  22. INSTALL ENGINE HANGERS
    1. Install the 2 engine hangers with the 4 bolts as shown in the illustration.
      PART NO.

      Item Part No.
      No. 1 engine hanger 12281-31120
      No. 2 engine hanger 12282-31100
      Bolt 91671-10825

      Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

    2. Attach the engine sling device and hang the engine with the chain block.
  23. REMOVE ENGINE STAND
