Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 2 AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

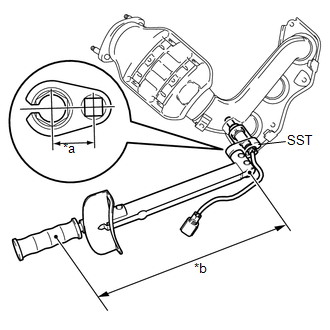

    1. Using SST, install the No. 2 air fuel ratio sensor (for Bank 2 Sensor 1) to the front exhaust manifold sub-assembly LH.
      GTY481507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Fulcrum Length of SST
      *b Fulcrum Length of Torque Wrench
      • SST: 09224-00010

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If a component has been dropped or subjected to a strong impact, replace No. 2 air fuel ratio sensor (for Bank 2 Sensor 1).

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench (Refer to PRECAUTION [12/2015 - 08/2016] ).
      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 300 mm (11.8 in.)): 40 N*m (408 kgf*cm, 30 ft.*lbf).
  2. INSTALL EXHAUST MANIFOLD TO HEAD GASKET LH
    1. Install a new exhaust manifold to head gasket LH.
  3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH
    1. Temporarily install the exhaust manifold sub-assembly LH with the 6 nuts.

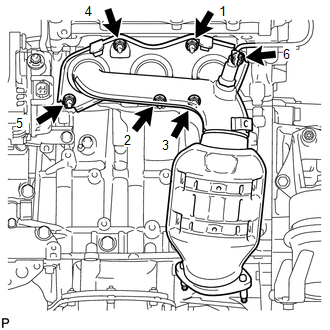

      Fig 1: Exhaust Manifold Sub-Assembly LH Tightening Sequence
      GTY690511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 12 mm deep socket wrench, tighten the 6 nuts in the order shown in the illustration.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  4. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator, tightening the 3 bolts in the order shown in the illustration.

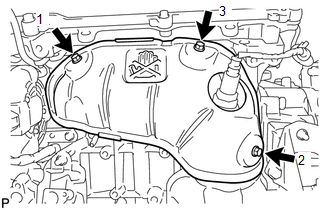

      Fig 2: No. 2 Exhaust Manifold Heat Insulator Tightening Sequence
      GTY726609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the air fuel ratio sensor (for Bank 2 Sensor 1) connector and engage the 2 harness clamps.
  5. INSTALL NO. 2 MANIFOLD STAY
    1. Install the No. 2 manifold stay, tightening the bolt and nut in the order shown in the illustration.

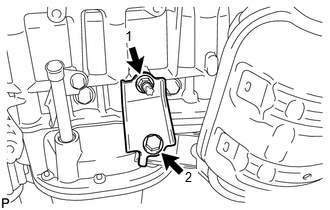

      Fig 3: No. 2 Manifold Stay Tightening Sequence
      GTY698800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

  6. INSTALL NO. 2 OIL LEVEL DIPSTICK GUIDE
    1. Install a new O-ring to the No. 2 oil level dipstick guide.
    2. Apply a light coat of engine oil to the O-ring.
    3. Push in the No. 2 oil level dipstick guide end into the oil level dipstick guide.
    4. Install the No. 2 oil level dipstick guide with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    5. Install the oil level dipstick.
  7. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

    Refer to PROCEDURE - Step 1

  8. INSTALL EXHAUST MANIFOLD TO HEAD GASKET
    1. Install a new exhaust manifold to head gasket.
  9. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
    1. Temporarily install the exhaust manifold sub-assembly RH with the 6 nuts.

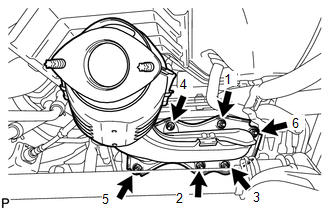

      Fig 4: Exhaust Manifold Sub Assembly RH Tightening Sequence
      GTY688464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 12 mm deep socket wrench, tighten the 6 nuts in the order shown in the illustration.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    3. Connect the air fuel ratio sensor (for Bank 1 Sensor 1) connector and engage the 2 harness clamps.
  10. INSTALL MANIFOLD STAY
    1. Install the manifold stay with the bolt and nut.

      Bolt

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

      Nut

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  11. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2WD)
    1. Inspect the free length.
      1. Using a vernier caliper, measure the free length of the compression spring.
        GTY144965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Free Length of Compression Spring

        Standard Length Minimum Length
        40.36 mm (1.59 in.) 38.86 mm (1.53 in.)

        If the length is not as specified, replace the compression spring.

    2. Using a plastic hammer and a wooden block, tap in a new gasket until its surface is flush with the front exhaust pipe assembly.
      GTY699397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Gasket
      *2 Front Exhaust Pipe Assembly
      *a Wooden Block
      *b Plastic Hammer
      NOTE:
      • Install the gasket in the correct direction.
      • Do not reuse the gasket.
      • Do not damage the gasket by dropping it, etc.
      • Do not damage the outer surface of the gasket.
      • Do not push in the gasket with the center exhaust pipe assembly when connecting it.
    3. Install 2 new gaskets to the front exhaust pipe assembly.
    4. Install the front exhaust pipe assembly to the exhaust manifold sub-assembly LH (TWC: front catalyst) and exhaust manifold sub-assembly RH (TWC: front catalyst) with 4 new nuts.

      Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)

    5. Connect the front exhaust pipe assembly to the center exhaust pipe sub-assembly (TWC: rear catalyst) with the 2 compression springs and 2 bolts.
      GTY478261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Exhaust Pipe Assembly
      *2 Center Exhaust Pipe Assembly
      *3 Gasket
      *a Space between flanges: 8.5 mm (0.335 in.)

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      NOTE:

      After the installation, check that the gaps between the flanges of the front exhaust pipe assembly and center exhaust pipe assembly are consistent front-to-rear and left-to-right.

    6. Connect the exhaust pipe clamp to the No. 1 exhaust pipe support bracket and tighten the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    7. Engage the 6 clamps to connect the oxygen sensor (for bank 2 sensor 2) wire to the 2 wire harness clamp brackets.
    8. Connect the oxygen sensor (for bank 2 sensor 2) connector.
    9. Pass the connector through the hole to the inside of the vehicle and install the grommet of the oxygen sensor (for bank 1 sensor 2) wire.
    10. Connect the oxygen sensor (for bank 1 sensor 2) connector.
  12. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for AWD)
    1. Install a new gasket to the front exhaust pipe assembly.
    2. Install the front exhaust pipe assembly to the exhaust manifold sub-assembly LH (TWC: front catalyst) with the 2 nuts.

      Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)

    3. Inspect the free length.
      1. Using a vernier caliper, measure the free length of the compression spring.
        GTY144965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Free Length of Compression Spring

        Standard Length Minimum Length
        42 mm (1.65 in.) 40.5 mm (1.59 in.)

        If the length is not as specified, replace the compression spring.

    4. Using a plastic hammer and a wooden block, tap in a new gasket until its surface is flush with the front No. 3 exhaust pipe sub-assembly.
      GTY473111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Gasket
      *2 Exhaust Manifold Converter Sub-assembly
      *a Wooden Block
      *b Plastic Hammer
      NOTE:
      • Install the gasket in the correct direction.
      • Do not reuse the gasket.
      • Do not damage the gasket by dropping it, etc.
      • Do not damage the outer surface of the gasket.
      • Do not push in the gasket with the front No. 3 exhaust pipe sub-assembly (TWC: rear catalyst) when connecting it.
    5. Install 2 new gaskets to the front No. 3 exhaust pipe sub-assembly.
    6. Install the front No. 3 exhaust pipe sub-assembly to the exhaust manifold sub-assembly RH (TWC: front catalyst) and front exhaust pipe assembly with 2 new nuts and 2 new bolts.

      Bolt

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      Nut

      Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)

    7. Connect the front No. 3 exhaust pipe sub-assembly to the center exhaust pipe sub-assembly (TWC: rear catalyst) with the 2 compression springs and 2 bolts.
      GTY478261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front No. 3 Exhaust Pipe Sub-assembly
      *2 Center Exhaust Pipe Assembly
      *3 Gasket
      *a Space between flanges: 8.5 mm (0.335 in.)

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      NOTE:

      After the installation, check that the gaps between the flanges of the front No. 3 exhaust pipe sub-assembly and center exhaust pipe assembly are consistent front-to-rear and left-to-right.

    8. Connect the exhaust pipe clamp to No. 1 exhaust pipe support bracket and tighten the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    9. Engage the 6 clamps to connect the oxygen sensor (for bank 2 sensor 2) wire to the 2 wire harness clamp brackets.
    10. Connect the oxygen sensor (for bank 2 sensor 2) connector.
    11. Pass the connector through the hole to the inside of the vehicle and install the grommet of the oxygen sensor (for bank 1 sensor 2) wire.
    12. Connect the oxygen sensor (for bank 1 sensor 2) connector.
  13. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    (Refer to INSTALLATION [12/2015 - ] )

  14. INSTALL NO. 2 ENGINE UNDER COVER (for AWD)
    1. Install the No. 2 engine under cover with the 2 bolts, 2 screws and clip.

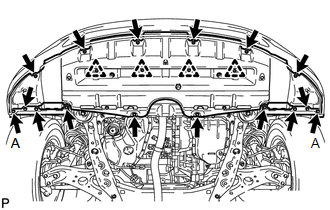

  15. INSTALL NO. 1 ENGINE UNDER COVER
    1. Install the No. 1 engine under cover with the 2 bolts, 6 screws and 4 clips.
      GTY304455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front wheel opening extension pad RH and front wheel opening extension pad LH with the 8 screws.

      Screw A

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  16. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    See step  7

  17. INSTALL V-BANK COVER SUB-ASSEMBLY
  18. INSTALL RADIATOR ASSEMBLY

    (Refer to INSTALLATION [12/2015 - 08/2016] )

  19. INSPECT FOR EXHAUST GAS LEAK
