Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
    1. Install a new gasket onto the engine coolant temperature sensor.

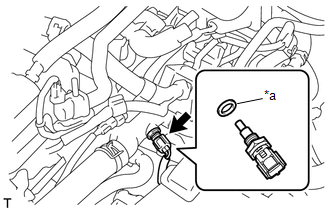

      GTY298245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a New Gasket
    2. Using a 19 mm deep socket wrench, install the engine coolant temperature sensor.

      Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

    3. Connect the engine coolant temperature sensor connector.
  2. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  3. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  4. INSTALL AIR CLEANER AND HOSE

    See step  4

  5. INSTALL AIR CLEANER INLET COVER ASSEMBLY SEAL

    See step  5

  6. INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to INSTALLATION [12/2015 - ] )

  8. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 15

  9. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 95
