Installation [12/2015 - 08/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK SENSOR

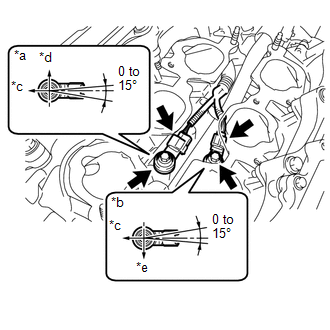

- Install the 2 knock sensors with the 2 bolts as shown in the illustration.TEXT IN ILLUSTRATION
*a for Bank 1 *b for Bank 2 *c RH *d Rear *e Front Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
NOTE:Make sure that each knock control sensor is in the correct position.
- Connect the 2 knock sensor connectors.
- Install the 2 knock sensors with the 2 bolts as shown in the illustration.
- INSTALL INTAKE MANIFOLD
(Refer to INSTALLATION [12/2015 - 08/2016] )
