Removal [08/2015 - 08/2017]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work. Refer to: PRECAUTION [08/2015 - 08/2017] .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to: INITIALIZATION [08/2015 - 08/2017] .
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to: PROCEDURE - Step 12
- REMOVE COWL SIDE TRIM BOARD LH
Refer to: PROCEDURE - Step 14
- SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to: PROCEDURE - Step 16
- REMOVE FRONT PILLAR GARNISH LH
Refer to: PROCEDURE - Step 26
- REMOVE INSTRUMENT SIDE PANEL LH
Refer to: PROCEDURE - Step 15
- REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to: PROCEDURE - Step 3
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
Refer to: PROCEDURE - Step 17
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to: PROCEDURE - Step 8
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to: PROCEDURE - Step 9
- REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to: PROCEDURE - Step 10
- REMOVE REAR CONSOLE BOX POCKET
Refer to: PROCEDURE - Step 11
- REMOVE CONSOLE BOX CARPET
Refer to: PROCEDURE - Step 12
- REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to: PROCEDURE - Step 13
- REMOVE FRONT CONSOLE BOX
Refer to: PROCEDURE - Step 14

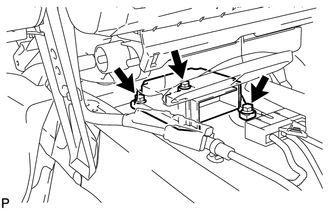

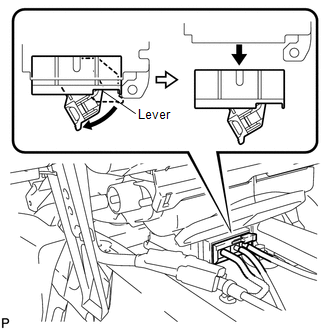

- REMOVE AIRBAG SENSOR ASSEMBLY WARNING:
Confirm that the negative battery terminal is disconnected before performing the operation. Even an impact to only the airbag sensor will cause the airbag to deploy.
