Removal [12/2012 - ]: Procedure

  1. REMOVE ENGINE AND TRANSAXLE

    Refer to REMOVAL [12/2012 - ]

  2. DISCONNECT ENGINE WIRE
    1. Disconnect the connectors and clamps securing the engine wire from the engine.
  3. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
    1. Remove the 16 bolts, 3 seal washers, cylinder head cover sub-assembly and cylinder head cover gasket.

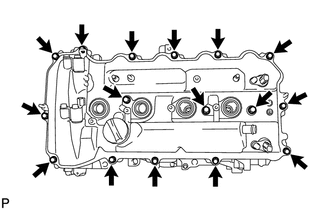

      GTY194974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 camshaft bearing cap oil hole gaskets from the No. 1 camshaft bearing cap.
      GTY314686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the No. 2 camshaft bearing cap.
  5. REMOVE SPARK PLUG TUBE GASKET
    1. Using a screwdriver, pry out the 4 spark plug tube gaskets.

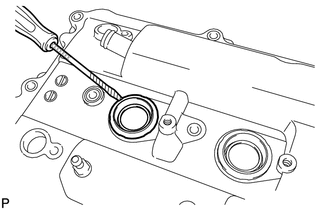

      GTY170418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the cylinder head cover sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  6. REMOVE CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 2

  7. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 18 [12/2012 - 08/2017] , or refer to PROCEDURE - Step 19 [08/2017 - ]

  8. REMOVE ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and engine mounting bracket RH.

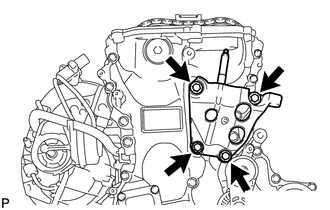

      GTY214434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 5 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - ]

  10. REMOVE TIMING CHAIN COVER ASSEMBLY
    1. Remove the 17 bolts and 2 nuts.

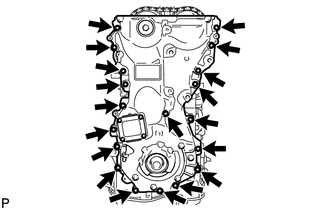

      GTY195048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the timing chain cover by prying between the timing chain cover and cylinder head, camshaft housing, cylinder block and stiffening crankcase with a screwdriver as shown in the illustration.

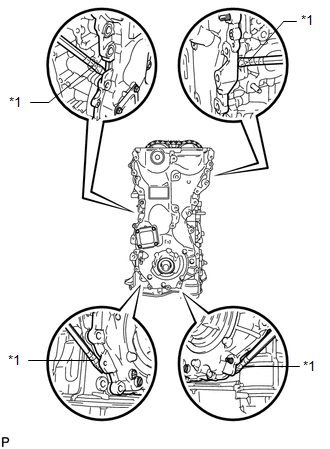

      GTY383027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head, camshaft housing, cylinder block, stiffening crankcase and timing chain cover.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the 2 oil pump gaskets from the stiffening crankcase.

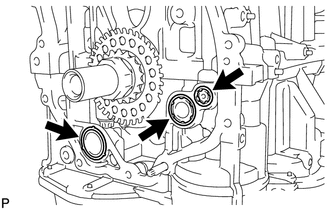

      GTY314600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the oil hole cover gasket from the stiffening crankcase.
  11. REMOVE TIMING CHAIN COVER OIL SEAL
    1. Using a screwdriver and wooden block, pry out the oil seal.

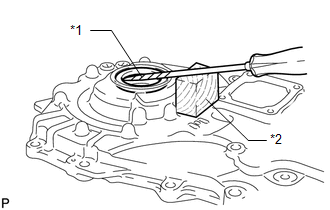

      GTY367828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
      *2 Wooden Block
      NOTE:

      Do not damage the surface of the oil seal press fit hole.

      HINT:

      Tape the screwdriver tip before use.
