Removal [12/2012 - 08/2016]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6

  3. DRAIN ENGINE COOLANT

    See step  2

  4. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [12/2012 - ]

  5. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    1. Remove the bolt and V-ribbed belt tensioner assembly.
      GTY314503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ENGINE WATER PUMP ASSEMBLY

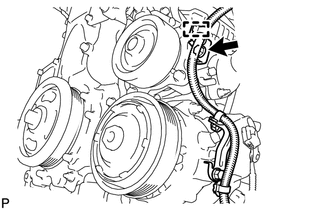

    1. Detach the clamp of the wire harness from the wire harness bracket.
      GTY314614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness bracket.
    3. Remove the 7 bolts, engine water pump assembly and water pump gasket.
      GTY298545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
