Removal [12/2012 - ]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 2

  2. REMOVE CRANKSHAFT POSITION SENSOR

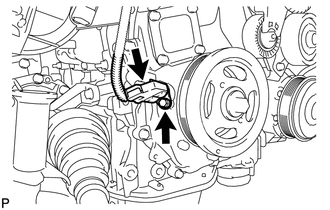

    GTY314654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.
