Removal [10/2014 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 or PROCEDURE - Step 1

  2. REMOVE FRONT WHEEL LH
  3. REMOVE FRONT FENDER LINER LH

    HINT:

    Use the same procedure for the RH side and LH side (Refer to PROCEDURE - Step 3 ).

  4. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4 or PROCEDURE - Step 4

  5. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5 or PROCEDURE - Step 5

  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  7. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
      GTY381033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE HOOD LOCK ASSEMBLY

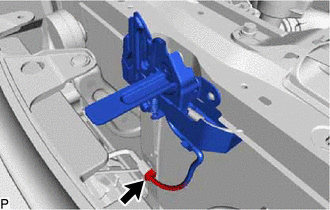

    1. Disconnect the connector.
      GTY607422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

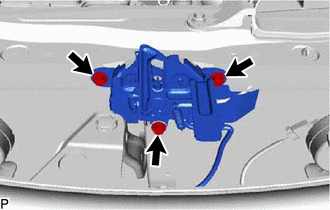

    2. Remove the 3 bolts.
      GTY582817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the hood lock control cable assembly to remove the hood lock assembly.
      GTY462506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Using a screwdriver, disengage the 6 clamps and hood cable grommet as shown in the illustration.
      GTY575423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Hood Lock Control Cable *2 Hood Cable Grommet

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the hood lock control cable assembly from the engine compartment to remove it.
