Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 9 clips and cool air intake duct seal.

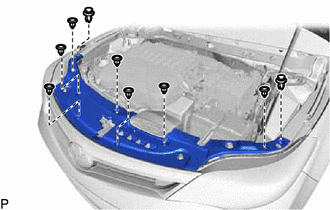

      GTY369788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HOOD CENTER CUSHION
    1. Remove the 2 hood center cushions.
      GTY368895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT BUMPER ASSEMBLY
    1. Put protective tape around the front bumper assembly as shown in the illustration.

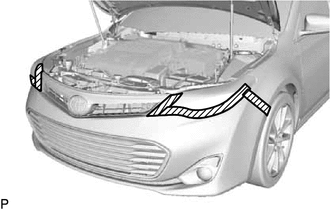

      GTY369789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape
    2. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.
      GTY550344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pin Hold Clip

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Remove the clip.

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the 6 screws.

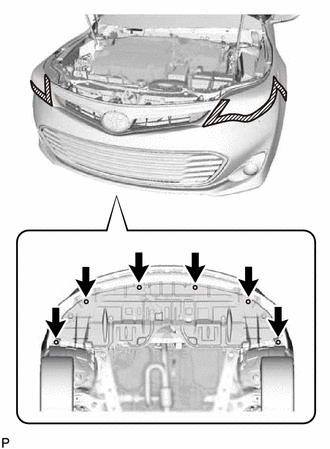

      GTY369778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 3 claws as shown in the illustration.

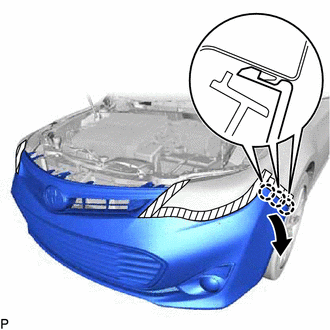

      GTY369776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    6. Pull back the side of the front bumper assembly and disconnect each connector.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

    7. Using a clip remover, remove the 3 clips.

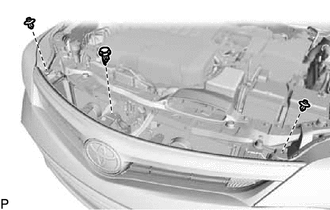

      GTY382571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the front bumper assembly as shown in the illustration.

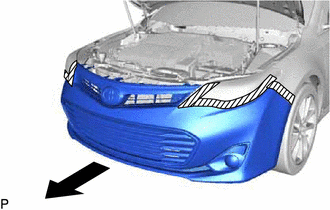

      GTY369779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
