Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
    1. Remove the 3 screws and front wheel opening extension pad RH.
      GTY369943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT FENDER LINER RH
    1. Using a screwdriver, turn the pin 90 degrees counterclockwise to remove the pin hold clip.
      GTY366714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 90°
    2. Remove the clip.

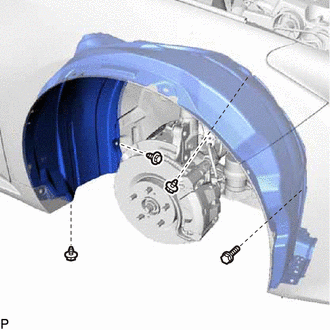

    3. Remove the 3 screws and bolt.
      GTY370004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

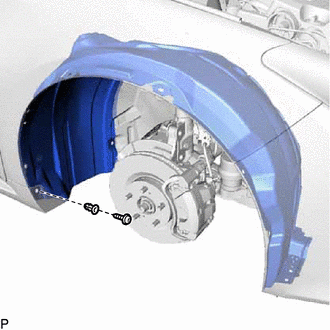

    4. Remove the grommet and screw.
      GTY369995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The grommet needs to be replaced with a new one because it will break when it is removed.

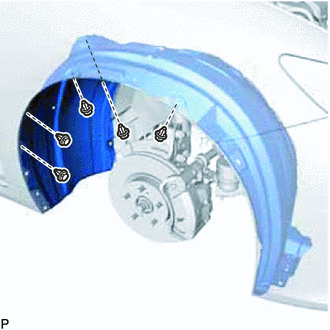

    5. Remove the 5 clips and front fender liner RH.
      GTY378573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DRAIN WINDSHIELD WASHER FLUID

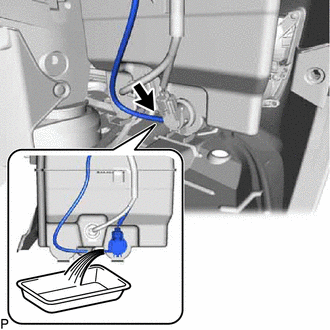

    1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the windshield washer fluid.
      GTY369992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the windshield washer fluid.

  5. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
    1. Disconnect the connector.
      GTY370003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the windshield washer motor and pump assembly as shown in the illustration.
