Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Driver Side)

    Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1

  2. REMOVE FRONT DOOR SCUFF PLATE LH (for Driver Side)

    Refer to PROCEDURE - Step 4 Refer to PROCEDURE - Step 4

  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 5 Refer to PROCEDURE - Step 5

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH (for Driver Side)

    Refer to PROCEDURE - Step 11

  5. REMOVE INSTRUMENT SIDE PANEL LH (for Driver Side)

    Refer to PROCEDURE - Step 12

  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 13

  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 14

  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 8

  9. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 15

  10. DISCONNECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH (for Driver Side)

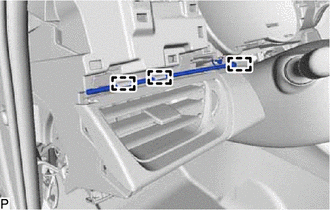

    1. Disengage the 3 clamps to disconnect the No. 1 interior illumination light assembly LH.
      GTY425799Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  11. REMOVE NO. 1 INSTRUMENT PANEL STAY SUB-ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 17

  12. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 18

  13. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Driver Side)

    Refer to PROCEDURE - Step 20

  14. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH (for Driver Side)

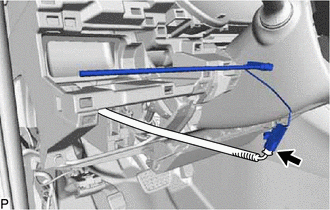

    1. Disconnect the connector to remove the No. 1 interior illumination light assembly LH.
      GTY450836Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  15. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Front Passenger Side)

    (Refer to REMOVAL [10/2014 - ] )

  16. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for Front Passenger Side)

    Refer to PROCEDURE - Step 37

  17. REMOVE GLASS BREAKAGE SENSOR ECU (for Front Passenger Side)

    w/ Glass Breakage Sensor: (Refer to PROCEDURE - Step 3 )

  18. REMOVE REMOTE ENGINE STARTER ECU WITH BRACKET (for Front Passenger Side)

    w/ Remote Engine Starter System: (Refer to PROCEDURE - Step 3 )

  19. REMOVE GLASS BREAKAGE SENSOR ECU WITH REMOTE ENGINE STARTER ECU (for Front Passenger Side)

    for Glass Breakage Sensor with Remote Engine Starter System: (Refer to PROCEDURE - Step 4 )

  20. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Front Passenger Side)

    Refer to PROCEDURE - Step 41

  21. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH (for Front Passenger Side)

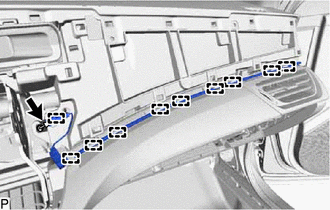

    1. Disconnect the connector.
      GTY425833Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Disengage the 10 clamps to remove the No. 1 interior illumination light assembly RH.
