Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

Refer to PROCEDURE - Step 37

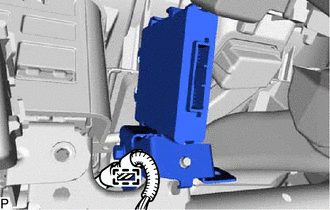

1. Disconnect the connector.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

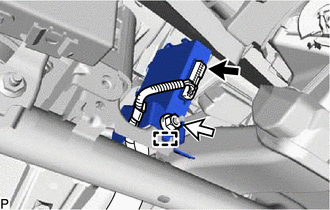

2. Remove the nut.
3. Disengage the guide.
4. Disengage the clamp and remove the remote engine starter ECU with bracket.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

See step  4

1. w/o Glass Breakage Sensor:
   1. Remove the bolt and bracket.

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      TEXT IN ILLUSTRATION



      *1

      Bracket

2. w/ Glass Breakage Sensor
   1. Remove the bolt and glass breakage sensor ECU.

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

      TEXT IN ILLUSTRATION



      *1	Glass Breakage Sensor ECU

3. Disengage the claw and remove the remote engine starter ECU as shown in the illustration.

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
