Installation [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Pass the hood lock control cable assembly into the engine compartment.
    2. Pass the cable through the upper radiator support.
    3. Engage the hood lock control cable assembly to the 5 clamps and hood cable grommet.
  2. INSTALL HOOD LOCK ASSEMBLY

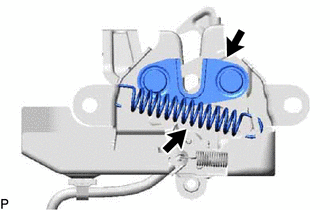

    1. Apply MP grease to the sliding parts of the lock.
      GTY429933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the hood lock control cable assembly.
    3. Install the hood lock assembly with the 2 bolts and hood lock bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    4. w/ Engine Hood Courtesy Switch:
      1. Connect the connector.

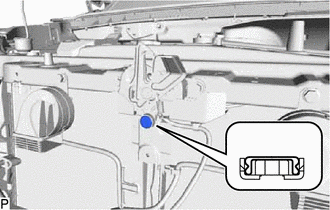

    5. Install a new hood lock nut cap.
      GTY429938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL RADIATOR GRILLE (w/o Dynamic Radar Cruise Control System)

    Refer to INSTALLATION [02/2014 - 11/2016]

  4. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to INSTALLATION [02/2014 - 11/2016]

  5. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Connect the hood lock control cable assembly to install the hood lock control lever sub-assembly.
  6. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  7. INSTALL FRONT FENDER LINER LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 3

  8. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 4

  9. INSTALL FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH

    Refer to INSTALLATION [02/2014 - ]

  10. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13

  11. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [02/2014 - 11/2016]

  12. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34

  13. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 55 , or refer to PROCEDURE - Step 56

  14. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 56 , or refer to PROCEDURE - Step 57
