Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL WASHER MOTOR AND PUMP ASSEMBLY
    1. Install the washer motor and pump assembly as shown in the illustration.

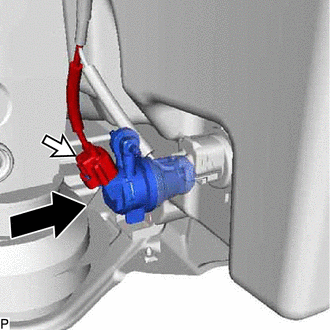

      GTY445826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Connect the washer hose.

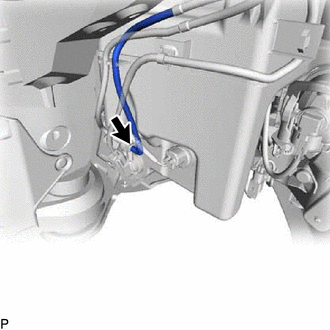

      GTY455168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADD WASHER FLUID
    1. Add washer fluid to the washer jar.
  3. INSTALL FRONT FENDER LINER RH
    1. Install the front fender liner RH with the 2 screws (A) and 5 screws (B).

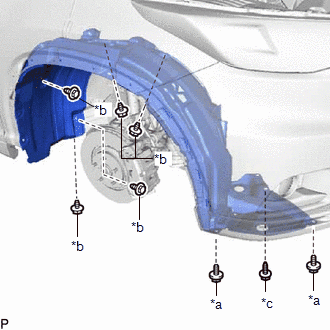

      GTY435945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screws (A)
      *b Screws (B)
      *c Bolt
    2. Install the bolt.
    3. Install 2 new grommets.
    4. Install the clip (A).

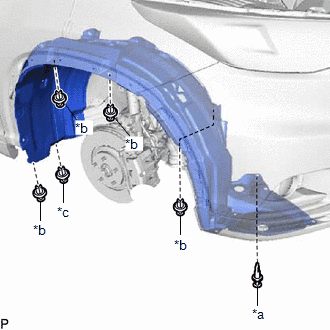

      GTY450714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Clip (B)
      *c Clip (C)
    5. Install the 4 clips (B).
    6. w/o Mudguard:
      1. Install the clip (C).
  4. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
    1. Install the front wheel opening extension pad RH with the 3 screws.
  5. INSTALL FRONT WHEEL RH

    Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13

  6. INSTALL FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to INSTALLATION [02/2014 - ]
