Installation [11/2015 - 11/2016]: Procedure
- INSTALL FRONT LOWER COIL SPRING INSULATOR
- Install the front lower coil spring insulator to the front shock absorber assembly.

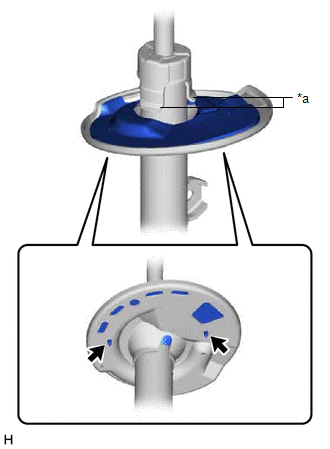

*a Claw Positioning Pin NOTE:- When installing the front lower coil spring insulator, fit the insulator to the depression of the spring seat and insert the positioning pin into the hole.
- When installing the front lower coil spring insulator, make sure that the front lower coil spring insulator does not get caught on the claws of the front shock absorber assembly.
- Install the front lower coil spring insulator to the front shock absorber assembly.
- INSTALL FRONT SPRING BUMPER
- INSTALL FRONT COIL SPRING
- Secure SST in a vise.
- SST: 09727-00050
- SST: 09727-30021
- 09727-00010
- 09727-00031

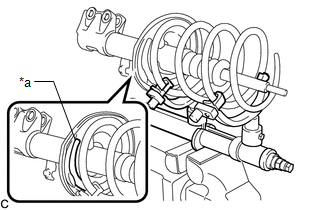

- Attach the arms of SST to the diameter of the front coil spring.

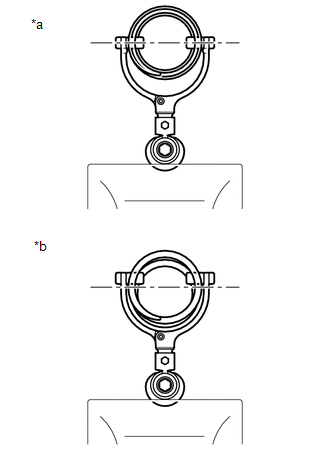

*a Correct *b Incorrect WARNING:- Make sure that the front coil spring is installed so that the distance between the upper and lower arms of SST is at the maximum.
- Make sure that the claws of the arms are securely attached.
- Using SST, compress the front coil spring.WARNING:
- If the front coil spring bends during compression, immediately stop compression and reinstall SST.
- Do not excessively compress the front coil spring so that the coils contact each other.
- Do not use an impact wrench. It will damage SST.
- Install the front coil spring to the front shock absorber assembly.
*a Depression NOTE:Make sure to fit the end of the front coil spring that has the larger diameter into the depression of the front lower coil spring insulator.
- Secure SST in a vise.
- INSTALL FRONT SPRING SEAT SUB-ASSEMBLY WITH INSULATOR
- Install the front spring seat sub-assembly with insulator to the front shock absorber assembly.NOTE:

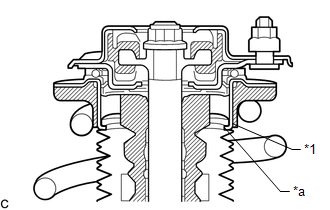

Make sure that the top end of the insulator (shock absorber dust cover) and the strut mounting bearing are securely attached.
*1 Strut Mounting Bearing *a Top End of the Insulator (Shock Absorber Dust Cover)
- Install the front spring seat sub-assembly with insulator to the front shock absorber assembly.
- INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY
- Install the front suspension support sub-assembly as shown in the illustration.

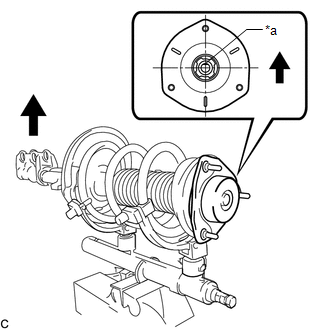

*a Slot Outside of the Vehicle HINT:
Check that the slot on the piston rod and the slot on the front suspension support sub-assembly are aligned.
- Temporarily tighten a new front support to front shock absorber nut.
- While aligning a stud bolt of the front suspension support sub-assembly and the front shock absorber lower bracket, remove SST from the front coil spring.
Outside of the Vehicle NOTE:- Do not use an impact wrench. It will damage SST.
- When installing the front suspension support sub-assembly, ensure that any misalignment between the front shock absorber lower bracket and the stud bolt is within +/- 5°. Use the stud bolt that is closest to the outside of the vehicle.
- Install the front suspension support sub-assembly as shown in the illustration.
- CONNECT FRONT SPRING SEAT SUB-ASSEMBLY WITH INSULATOR
- Connect the end of the insulator of the front spring seat sub-assembly with insulator with the claws of the front shock absorber assembly.NOTE:
- Make sure that the end of the insulator is securely attached to the claws of the front shock absorber assembly.
- Make sure there is no excessive damage to the bellows of the insulator.
- Do not allow oil, grease, etc., to contact the insulator.
- If oil or grease has adhered, wipe clean with a cloth. Do not use an alcohol based cleaner.
*1 Front Spring Seat Sub-assembly with Insulator *a Claw
- Connect the end of the insulator of the front spring seat sub-assembly with insulator with the claws of the front shock absorber assembly.
- INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING

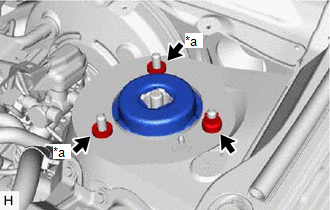

- Install the front shock absorber with coil spring (upper side) with the nut and 2 spacers.
Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)
*a Spacer - Install the front shock absorber with coil spring (lower side) to the steering knuckle with the 2 bolts and 2 nuts.
Torque: 290 N*m (2957 kgf*cm, 214 ft.*lbf)
NOTE:While keeping the bolts from rotating, tighten the nuts.
HINT:
The bolts can be installed in either direction, however, make sure that they are both installed in the same direction.
- Install the front shock absorber with coil spring (upper side) with the nut and 2 spacers.
- INSTALL FRONT STABILIZER LINK ASSEMBLY
- Install the front stabilizer link assembly to the front shock absorber assembly with the nut.
Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)
HINT:
If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.
- Install the front stabilizer link assembly to the front shock absorber assembly with the nut.
- INSTALL FRONT SPEED SENSOR
- Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.
Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)
NOTE:Do not twist the front speed sensor and front flexible hose when installing them.
HINT:
Install the front speed sensor harness bracket first and then the front flexible hose.

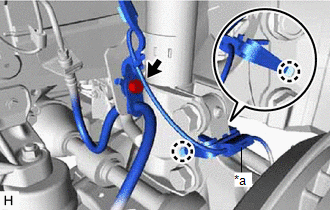

*a Sensor Clamp - Engage the 2 claws to install the sensor clamp.
- Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.
- INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

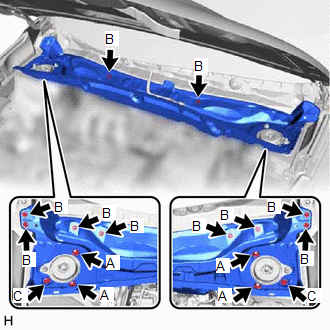

- Install the outer cowl top panel sub-assembly with the 10 bolts and 6 nuts.
Nut (A)
Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)
Bolt (B)
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
Nut (C)
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
- w/ Wiper Deicer System:
- Engage the 6 clamps to install the wire harness to the outer cowl top panel sub-assembly.
- Connect the connector.
- w/o Wiper Deicer System:
- Engage the 5 clamps to install the wire harness to the outer cowl top panel sub-assembly.
- Install the outer cowl top panel sub-assembly with the 10 bolts and 6 nuts.
- FULLY TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
- Fully tighten the front support to front shock absorber nut.
Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)
NOTE:Perform this step only when the front shock absorber with coil spring has been disassembled.
- Fully tighten the front support to front shock absorber nut.
- INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL FRONT WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
- STABILIZE SUSPENSION
- Lower the vehicle.
- Bounce the vehicle up and down several times to stabilize the suspension.
- INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Refer to ADJUSTMENT [02/2014 - 11/2016]
